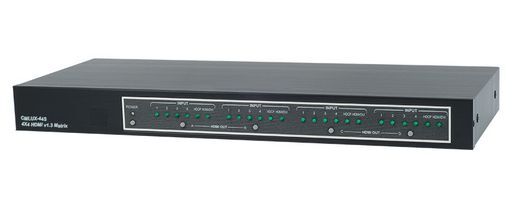

4X4 HDMI V1.3 MATRIX 1080P
4 INPUT BY 4 OUTPUT HDMI V1.3 MATRIX SWITCH WITH REMOTE
SKU code: WES_CMLUX-44S_1
This is a 4X4 HDMI V1.3 MATRIX 1080P of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4X4 HDMI V1.3 MATRIX 1080P |
| Notes | 4 INPUT BY 4 OUTPUT HDMI V1.3 MATRIX SWITCH WITH REMOTE CONTROL & RS232 PORT HDMI V1.3 Matrix provides the excellent solution for connecting all the devices and sources together for your convenience use, it also provides you a variety of choices on where to play your images with remote controller. Further, HDMI V1.3 matrix can transfer Deep Colour video and bit stream digital audio with maximum performance and it supports HDMI 1.3, HDCP 1.1 and DVI 1.0. High performance HDMI 1.3 Matrix of four input and four output with remote control for you to link with your favourite HDMI devices to enjoying movies, music, or games at once. When HDMI signal progresses through the system, it is re-timed, and level-compensated. Define HDCP, HDMI and DVI source. The LED light will light up to define the input sources format. Switchable EDID function for choosing the native resolution to display.HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant. Deep Colour 12 bit and new lossless compressed digital audio. The HDMI input is compensated, clock / phase adjusted, and jitter eliminated so the output is a brand new standard HDMI signal. Supports input source LED indicators on each output select. Compatible with all HDMI sources and displays. PC and HDTV resolutions from VGA to UXGA and 480i to 1080p. Supports RS-232 control. Supports IR remote control and IR extender. HDMI cable distance test with 1080p/8 bit resolution, the Input/Output source can run up to 15/15 metres. with 1080p/12 bit the Input/Output source can run up to 15/6 metres. |
| Description | Matrix 4x4 HDMI V1.3 Luxury Box |
| Input | 4x HDMI |
| Output | 4x HDMI |
| Interface | HDMI |
| Compliance | 1.3 |
| 3D | Yes |
| CEC | - |
| EDID | Yes |
| Cascade | Yes |
| Max Res. | UXGA/1080p |
| Chassis. | Metal |
| HDCP | Yes |
| Page | 22 |
| HDMI Input | 4 |
| HDMI Output | 4 |
| Manufacturer | Cypress |
| SKU No | WES_CMLUX-44S_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CMLUX-44S |
| SKU | WES_CMLUX-44S_1 |
| Brand | Cypress |
