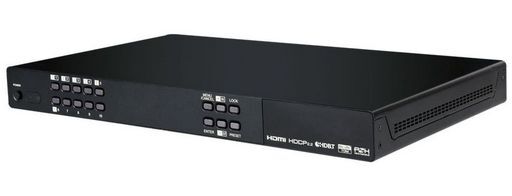

4x6 HDMI / AUDIO OVER HDBaseT MATRIX 4K60 WITH LAN & OAR - CYPRESS
WITH IR, RS-232, PoH, LAN, IP CONTROL & OAR
SKU code: WES_CPLUS-442CVEA_1
This is a 4x6 HDMI / AUDIO OVER HDBaseT MATRIX 4K60 WITH LAN & OAR - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4x6 HDMI / AUDIO OVER HDBaseT MATRIX 4K60 WITH LAN & OAR - CYPRESS |
| Notes | WITH IR, RS-232, PoH, LAN, IP CONTROL & OAR This 4×6 HDMI and HDBaseT Matrix supports routing and transmission of video (resolutions up to 4K@60Hz & HDCP 2.2) and audio (multi-channel digital/stereo analog) while providing flexible control via IR, RS-232, Telnet or WebGUI. As many as four UltraHD sources may be routed to any of six destinations, four via single Cat.5e/6/7 cables (up to 100m at 1080p or up to 60m at 4K@30Hz) and two via HDMI 2.0 outputs. The two HDMI 2.0 outputs support transmission of 18Gbps UltraHD HDMI sources (up to 4K@60Hz, 4:4:4) from any HDMI input or they can mirror any of the HDBaseT outputs for local monitoring. 3D video is also supported when compatible sources and displays are connected. This product supports passing 7.1 channel LPCM digital audio as well as advanced bitstream and HD bitstream audio formats. This product supports the Optical Audio Return (OAR) channel feature, found on compatible HDBaseT receivers, allowing optical audio sources connected to those receivers to be sent back to the matrix unit. LAN support allows your 100BaseT network to be extended to smart TVs or game consoles. The Power over HDBaseT (PoH) function can power compatible receivers. Control is via manual selection buttons, WebGUI, Telnet, RS-232 or IR remoteHDMI 2.0, HDCP 1.4 and HDCP 2.2 compliantRoutes 4 HDMI sources to 6 displays using 4 HDBaseT outputs and 2 independent or mirrored HDMI outputsHDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, 48v PoH (Power over HDBaseT) and control (Bidirectional IR & RS-232 pass through)Supported HDBaseT resolutions: VGA~WUXGA, 480i~1080p, 4K@24/25/30Hz (RGB, YUV 4:4:4 & YUV 4:2:2) & 4K@60Hz (YUV 4:2:0) dependent upon the output display’s EDID settingsSupports HDMI output resolutions up to 4K@60Hz (RGB/YUV 4:4:4)Supports automatic 4K@60Hz RGB/YUV 4:4:4 to YUV 4:2:0 conversion for HDBaseT outputs4K@30Hz signals can be transmitted up to 60m via Cat.5e/6 and up to 100m via Cat.6a/7Supports pass-through of all standard digital audio formats: LPCM 2.0/5.1/7.1, bitstream, and HD bitstreamSupports audio matrix functionality enabling full audio management of the system including HDBaseT audio selection, fully independent audio-only zones and HDMI audio embedding and de-embedding (LPCM only)Supports Digital to Analog Conversion (DAC) and Analog to Digital Conversion (ADC) for audio integrationSupports volume, treble, bass, and audio delay for lip-sync (up to 230ms) on analog audio outputs and mute on all outputsHDBaseT outputs with Optical Audio Return (OAR) supportAdvanced internal and external EDID management with 4 sets of configurable EDID settingsBi-directional IR support over HDBaseTControl via front panel controls, Ethernet (Telnet & WebGUI), RS-232, and IR remote1U rack mounted design Note: CH-1529RX HDBaseT receiver with OAR support is recommended for use with this product. |
| Description | 4×6 HDMI/Audio over HDBaseT Matrix with LAN, Optical Audio Return and 48V power to receivers |
| 4K | Yes |
| Bandwidth | HDMI: 18Gbps, HDBaseT: 10.2Gbps |
| Cable Length | HDMI: 3M (4K), HDBaseT: 60M (4K@30Hz) via Cat5e/6 |
| Chassis. | Metal |
| Controller | 5x IR Extender, 5x IR blaster, 1x RS232, 1x RJ45(Control), 1x USB |
| Dimensions | 482x279x49mm |
| EDID | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 4×HDMI, 1x Toslink, 4xRCA(Stereo), 1x Coax(SPDIF audio) |
| IR | Yes |
| Max Res. | 4K@60Hz (4:4:4) for HDMI, 4K@60Hz (4:2:0) for HDBase-T |
| Output | 2x HDMI, 4x Cat5e/6/7, 8xRCA(Stereo), 4x RCA(Extended Stereo) |
| PoE | PoH |
| RS-232 | Yes |
| Size | 482x279x49mm |
| Compatible with | CH-1529RX |
| Manufacturer | Cypress |
| Receiver | CH-1529RX |
| AVLC | No |
| SKU No | WES_CPLUS-442CVEA_1 |
