5 DESIGNER SERIES WOOFER
DAYTON AUDIO
SKU code: WES_DS135-8_1

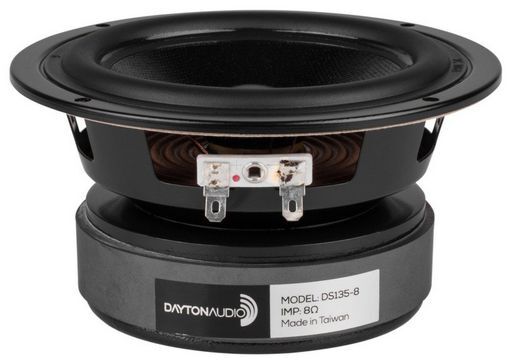

This is a 5 DESIGNER SERIES WOOFER of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 5 DESIGNER SERIES WOOFER |
| Notes | DAYTON AUDIO Dayton Audio's Designer Series DS135-8 5 woofer combines smooth response, excellent bass performance, and a stylish visual presentation. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies-without exceeding Xmax. These speakers combine useful performance parameters with elegant style. Carefully optimised to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile.Optimised to yield a low 3 dB down point and high potential output in a reasonably sized cabinetCoated paper cone, half roll rubber surround for accurate reproductionVented pole piece for minimised power compressionSmooth frequency response and linear roll-off simplify filter design |
| Description | 5' DESIGNER SERIES WOOFER - DAYTON AUDIO |
| Type | Woofer |
| Size | 5' |
| Power | 50W |
| Coil | 25.4mmØ |
| Impedance | 8Ω (Re 5.9Ω) |
| Depth | 65mm |
| Sens. | 86.6dB |
| Re | 5.9Ω |
| Qms | 2.02 |
| Qes | 0.48 |
| Qts | 0.39 |
| Vas | 7.27L |
| Sd | 75.4cm² |
| Cms | 0.95mm/N |
| Fs | 52.5Hz |
| Mms | 9.7g |
| Zn | 8Ω |
| Le | 0.84mH |
| Diam. | 135mmØ |
| Manufacturer | Dayton Audio |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 0-50 Watt |
| Series | Designer Series |
| Hole | 112mmØ |
| QTY | 1 |
| Inch | 5 |
| Prms | 50W |
| Price Type | each |
| SKU No | WES_DS135-8_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | DS135-8 |
| SKU | WES_DS135-8_1 |
| Brand | Dayton Audio |
