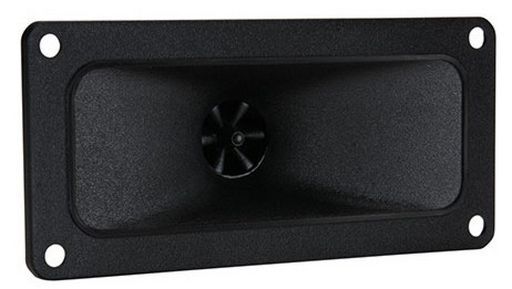

This is a 5 HORN of brand Daichi.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 5 HORN
Notes 22mmØ PIEZO 50Wrms KSN1016A REPLACEMENT Piezo horn loaded tweeter. Replacement for KSN1016A 22mm Ceramic Piezo 50Wrms 50mm deep Exponential horn.
Description5' HORN
Size5x2'
Price Typeeach
Power75Wmax
Freq.3KHz - 40KHz
QTY1
Sens.92dB
ManufacturerDaichi
Dimensions146x70mm
Impedance (Ohm)Piezo
Power (RMS)0-50 Watt
Hole-
Mount-
Fo-
Fs-
Re0.3uF
Diam.146x70mm
Coil22mm
Depth50mm
Prms50W
SPL92dB
Brand.Daichi
OEMKSN1016A
ImpedancePiezo
ZnPiezo
SeriesPiezo
MaterialsPiezo
Mag.Piezo 22mm
TypeTweeter Horn
SKU NoWES_PZ1016_1
