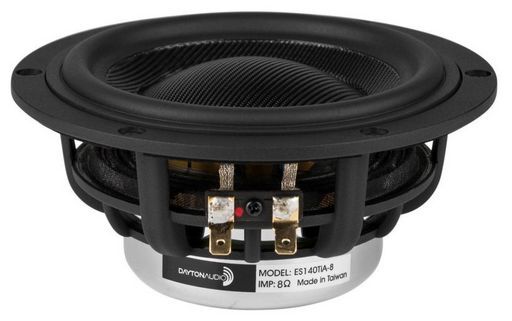

5½ WOOFER ESOTERIC SERIES - DAYTON
NEODYMIUM & 3 TITANIUM VOICE COIL
SKU code: WES_ES140TIA-8_1
This is a 5½ WOOFER ESOTERIC SERIES - DAYTON of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 5½ WOOFER ESOTERIC SERIES - DAYTON |
| Notes | NEODYMIUM & 3 TITANIUM VOICE COIL The Dayton Audio ES180TiA-8 is a high-tech 7 woofer featuring an FEA-optimized neodymium ring motor structure with dual copper shorting rings for ultra-low distortion. Its enormous 3 edge-wound voice coil on a titanium former provides high power handling and excellent transient response.Dayton Audio's Esoteric Series is the ultimate expression of Dayton Audio’s transducer engineering knowledge and finesse. Featuring high-end materials and advanced engineering throughout, the Esoteric Series collection of drivers elevates the state of the art in driver design. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration. The ES180TiA-8 7” woofer is a technological tour de force, with a fully FEA- and Klippel-optimized design from the powerful neodymium motor assembly with dual shorting rings to the moving structure with large 3” voice coil, titanium voice coil former, and tightly woven glass fiber cone. The voice coil is edgewound using rectangular copper-coated aluminium wire (CCAW) for maximum conductor density within the magnetic gap. The motor structure has been optimized using magnetic finite element analysis (FEA) to provide a symmetrical and extended flux field along the length of the gap, to permit longer excursion beyond the traditional limits in loudspeaker motor design. Dual shorting rings reduce coil inductance by shorting eddy currents created by the coil when it moves, for greatly reduced distortion. A titanium voice coil former was chosen to transmit motor force with maximum efficiency and minimal deformation of the coil former, for supreme resolution. The woven glass fiber cone supports the high force generated by the motor assembly with less deflection than other cone materials. Even the suspension system has been Klippel-optimized for excellent linearity. The attention to detail doesn’t end there – even the voice coil leads are tethered to the black Conex spider to eliminate mechanical resonance. All of these elements combine to create a driver that breaks new ground with superb transient response and ultra-low distortion. By breaking free from established design conventions and rethinking how each part of the driver should behave, the ES180TiA-8 consistently delivers a musically accomplished performance, time after time. It works well as the woofer in a 2-way high-performance loudspeaker system, and the 8-ohm impedance makes it a natural choice for dual woofer configurations.Now with improved frequency response for easier crossover integrationDual copper shorting rings in the motor for reduced energy storage3 edgewound voice coil on titanium former provides exceptional transient responseWoven glass-fiber cone provides excellent stiffness for minimal cone flexHigh excursion suspension design with tethered tinsel leads and fully ventilated frameHigh-power, ultra-low-distortion design |
| Description | 5½' WOOFER ESOTERIC SERIES - DAYTON |
| Type | Woofer |
| Size | 5.5' |
| Power | 100W |
| Coil | 75mmØ |
| Impedance | 8Ω (Re 6.6Ω) |
| Depth | 67mm |
| Sens. | 84.2dB |
| Re | 6.6Ω |
| Qms | 5.84 |
| Qes | 0.50 |
| Qts | 0.46 |
| Vas | 9.5L |
| Sd | 98.5cm² |
| Cms | 0.70mm/N |
| Fs | 41.7Hz |
| Mms | 20.9g |
| Zn | 8Ω |
| Le | 1.03mH |
| Diam. | 152mmØ |
| Manufacturer | Dayton Audio |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 51-100 Watt |
| Series | Esoterique |
| QTY | 1 |
| Prms | 100W |
| Hole | 125mmØ |
| Inch | 5.5 |
| Price Type | each |
| SKU No | WES_ES140TIA-8_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | ES140TIA-8 |
| SKU | WES_ES140TIA-8_1 |
| Brand | Dayton Audio |
