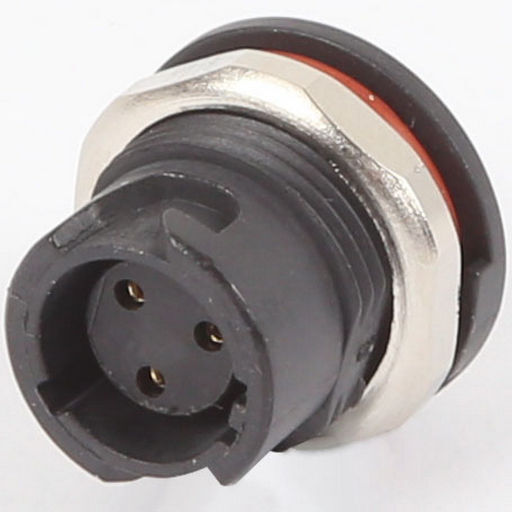

500 SERIES SOCKET - PUSH LOCK
FRONT PANEL MOUNT - FEMALE PINS
SKU code: WES_11003635-01_1
This is a 500 SERIES SOCKET - PUSH LOCK of brand Chogori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 500 SERIES SOCKET - PUSH LOCK |
| Notes | FRONT PANEL MOUNT - FEMALE PINS 500 series waterproof connector is manufactured with high quality materials to meet different requirements of various environments. Its plastic material used is high performance PA66. Female contacts are lathed and milled of two solid brass rods and reeds are stamped of beryllium copper. Terminals’ surfaces are gold-plated with 4u”-20u”. Superior mechanical properties ensure long effective application with insert and withdraw lifetime up to 3000 times. 500 series connector has a good performance is ideal for harsh working environments.Features |
| Description | 500 series 3pin panel mount with socket |
| Cable | 22AWG |
| Contact | 3 |
| Hole | 12.7mmØ |
| Series | 500 |
| Mechanical Life | 500 mating cycles |
| Wire Gauge | 0.34mm² |
| Panel Thickness | 1.6 - 3.2mm |
| IP | IP65/IP67 |
| Operating Temperature | -45 ~ +105 |
| Voltage Rating | 110V |
| Rated Current | 2A |
| Chogori Cat Page | 21 |
| Manufacturer | Chogori |
| SKU No | WES_11003635-01_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | 11003635-01 |
| SKU | WES_11003635-01_1 |
| Brand | Chogori |
