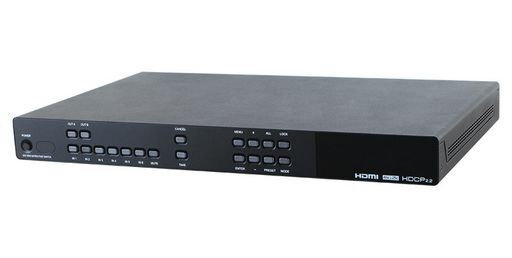

6×2 4K UHD HDMI MATRIX WITH FAST SWITCHING / HDCP2.2
6×2 4K UHD HDMI MATRIX WITH FAST SWITCHING / HDCP2.2
SKU code: WES_CDPS-UA6H2HFS_1
This is a 6×2 4K UHD HDMI MATRIX WITH FAST SWITCHING / HDCP2.2 of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 6×2 4K UHD HDMI MATRIX WITH FAST SWITCHING / HDCP2.2 |
| Notes | The 6 by 2 HDMI Matrix with Fast Switching allows HDMI signal from any of its 6 sources to be routed to and displayed on any of its 2 connected HDMI displays simultaneously with 'View All' mode and Picture-in-Picture (PIP) supported. With fast switching technology the unit can greatly eliminate the time required by swapping or turning on/off the connected displays. It supports 4K2K, 3D, 30-bit Deep Color, Hi-Def audio, HDCP 2.2 and other features defined by HDMI specifications. The management of source/sink scenarios can be operated easily through on-panel buttons, IR remote control, RS-232 or Ethernet protocol.HDMI matrix with 6x HDMI inputs and 2x HDMI outputsHDMI (with 3D and 4K2K supported), HDCP 2.2 and DVI compliantDisplays any of 6 HD sources on 2 HDTV displays simultaneously with fast switchingWhen in Preview mode, the system will be treated as Switcher (2 HDMI output same images at the same time)In Preview mode, it support View All (1 Main video source and 5 Sub video sources) and PIP (1 Main video source and 1 Sub video source)Supports 3D signal bypassSupports HDTV resolutions up to 4K2K: 3840×2160@24/25/30Hz, 3840×2160@50/60 (YUV420), 4096×2160@24/25/30Hz & 4096×2160 @50/60Hz (YUV420)Supports Optical audio extraction and audio sampling rate output up to 192kHzSupports data rate up to 3Gbps and 'Deep Color' up to 1080p@60Hz, 36-bitSupports individual EDID or common EDIDSupports passthrough of audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby Digital Plus, Dolby TrueHD & DTS-HD Master AudioSupports 6 sets of matrix preset functions for input/output settingInput ports HDCP support Standard and Apple modesCompliant with DVI source (not support 'Deep Color' and YCbCr 422/444 color spaces)Supports OSD on output B under Preview mode |
| 4K | Yes |
| 3D | Yes |
| ARC | - |
| CEC | - |
| Deep Colour | Yes |
| EDID | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| HEC | - |
| Input | 6x HDMI |
| Output | 2x HDMI |
| Manufacturer | Cypress |
| SKU No | WES_CDPS-UA6H2HFS_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CDPS-UA6H2HFS |
| SKU | WES_CDPS-UA6H2HFS_1 |
| Brand | Cypress |
