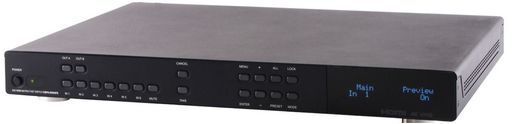

6×2 HDMI MATRIX 4K30 & SPDIF EXTRACTION - CYPRESS
RS232 ETHERNET WEB GUI IR REMOTE CONTROL
SKU code: WES_CDPS-6H2HFS_1
This is a 6×2 HDMI MATRIX 4K30 & SPDIF EXTRACTION - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 6×2 HDMI MATRIX 4K30 & SPDIF EXTRACTION - CYPRESS |
| Notes | RS232 ETHERNET WEB GUI IR REMOTE CONTROL The 6 by 2 HDMI matrix which allows HDMI signal from any of its six sources to be routed to and displayed on any of its two connected HDMI displays simultaneously with View All Mode and Picture-in picture (PIP) supported. With fast switching technology the device can greatly eliminate the time required by swapping or turning ON/OFF the connected displays. It supports 4Kx2K, 3D, 36-bit Deep Colour, Hi-Def lossless audio and other features defined by HDMI specifications. The management of source/sink scenarios can be operated easily through on-panel buttons, IR remote control, RS-232 or Ethernet protocol.HDMI, HDCP 1.1, DVI compliantResolutions supported: HDTV - 480i to 1080p plus 1080p24fps, and 4K2K; PC - VGA to WUXGAHigh Definition audio supported: Dolby® True-HD, Dolby® Digital Plus, DTS-HD Master Audio + 7.1 Channel LPCMRS-232, Telnet or IP Control, IR Remote Control (supplied), Web GUI ControlSupports audio extraction from HDMI input to Optical output, input audio sampling rate up to 192 kHzAbility to switch between any two sources within 1 secondBuilt-in EDID ManagementSupports 3D and 4K signalsCutting edge Picture in Picture preview function:When in Preview mode, the system will be treated as a Switcher (two simultaneous HDMI outputs)In Preview mode, the unit supports ‘View All’ (1 Main video source and 5 Sub video sources) and ‘PIP’ (1 Main video source and 1 Sub video source). 3D and 4Kx2K sources inputs are not supported for subwindowsNote: View All is TDM (Time Division Multiplexing display) |
| Input | 6x HDMI |
| Output | 2x HDMI |
| 3D | Yes |
| CEC | - |
| EDID | Yes |
| HDCP | Yes |
| HD Audio | Yes |
| 4K | Yes |
| ARC | - |
| HEC | - |
| Deep Colour | Yes |
| Max Res. | 4K @ 30Hz |
| Manufacturer | Cypress |
| Brand. | Cypress |
| Interface | HDMI |
| SKU No | WES_CDPS-6H2HFS_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CDPS-6H2HFS |
| SKU | WES_CDPS-6H2HFS_1 |
| Brand | Cypress |
