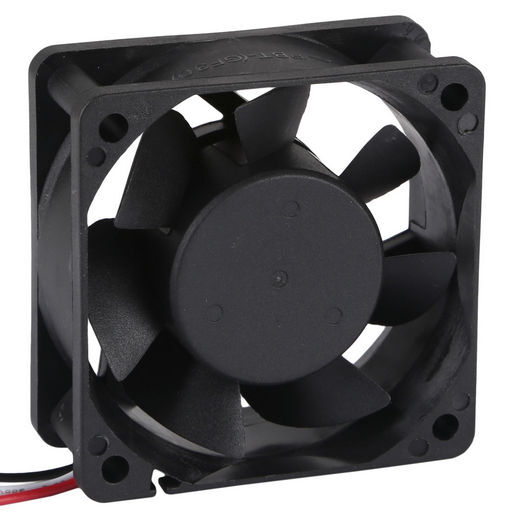

This is a 60mm FANS of brand Ceramica.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 60mm FANS
Notes 6cm Fans DAICHI branded fans are Dual Ball Bearing Fans (Some are sleeve brearing). CERAMICA branded Fans use the newer Ceramic Bearing Technology.  CERAMICA: Ceramic materials have come a long way since their discovery last century and the development costs have fallen dramatically due to special low cost techniques. New production developments have allowed Ceramica to develop a process of injection molding of ceramic sleeves using zirconia powder together with an adhesive to produce a very strong, flexible and durable ceramic sleeve that replaces the common plastic sleeve and/or metal bearing. These new, cost effective ceramic bearings are claimed to be far superior to the conventional ball bearing and economical sleeve bearing types of fans, offering greater performance with less noise and a longer service life of an average of 300,000 Hours!.  DAICHI: These fans are of high grade with extended life using dual ball bearing systems for greater reliability with an average service life of over 50,000 hours.DC type cooling fans are essential for many different types of cooling applications, but they do have a relatively short life expectancy when used on products that are designed to operate continuously in hot or hostile environments. One of their major limitations comes from the bearing system within the fan mechanism. Generally, there are several options of bearings to consider. Sleeve type bearings, with an average life expectancy of 30,000Hr. Single ball-bearing or a double ball bearing types. The double has an extended life expectancy of 50,000 Hr. (Note that these figures will drop if the fan is exposed to high ambient temperatures, corrosive or hostile environments). Noise levels on these metal type bearing fans can also be a downfall, as it will increase in loudness as operational time gets longer. Ceramica fans offer a vast improvement to these systems with their new range of Ceramic Sleeve Bearing Fans which offer the advantages of all systems plus even longer life by using new materials technology.Dual (2) Ball-Bearing fans from Daichi offer improved relaibilty with a longer service life over single ball bearing and sleeve type fan systems.Ceramic bearings run more smoothly, are quieter than their metal ball raced equivalents and their life expectancy is increased by a factor of six! While the average life span of a ball bearing fan is 50,000 Hr a ceramic equivalent model has a 300,000 Hr life expectancy.Zirconia (or ceramic steel) offers the traditional ceramic benefits of hardness, wear resistance and corrosion resistance, without the typical characteristic ceramic property of absolute brittleness.An ideal solution has been formulated with a product using Zirconia powder that can be injection molded for an economical manufacturing process.
DescriptionCeramica 24V Fan with Ceramic Bearing - 60x60x25mm
Volts24V
Size25mm
Watt3.4W
Speed3600rpm
BearingCeramic
Wire3x
Air17.2cfm
Noise24dB
ManufacturerCeramica
Dimensions60x60x25mm
SKU NoWES_FAN6025C24H-I_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN FAN6025C24H-I
SKU WES_FAN6025C24H-I_1
Brand Ceramica
