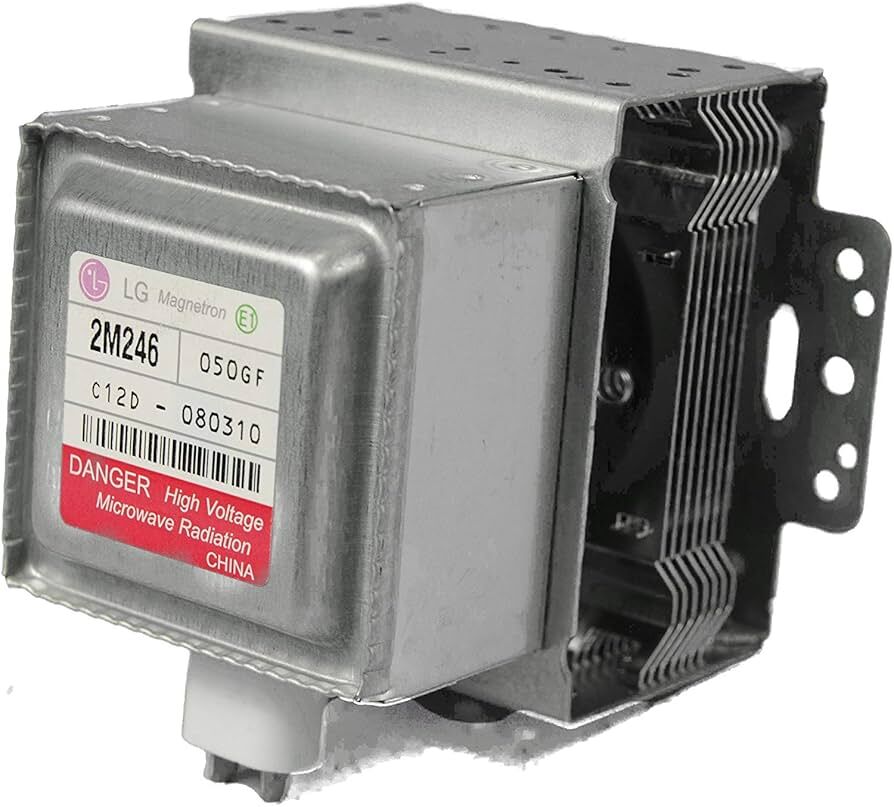

Genuine LG microwave magnetron, type 2M246-050GF, part number 6324W1A001L. The magnetron is the valve that actually generates the microwave energy. When it fails the oven still runs, the turntable still turns and the light still comes on – but the food does not get hot. This is the common magnetron fitted to a wide range of Korean-built microwave ovens sold under the LG, Smeg, Daewoo and GE badges.

PART NUMBERS – THIS MAGNETRON REPLACES

LG part number	6324W1A001L
Magnetron type	2M246-050GF
Also replaces (LG)	6324W1A001A, 6324W1A001B, 6324W1A001E, 6324W1A001H, 6324W1A001Y
Also replaces (other)	EAS42812905, EAS42812937, MAG2462, MAG2821, WB27X10309 (GE), AP4457332, PS3529034
Output	1.025 kW at 2.46 GHz
Filament	3.15 V, 12.5 A
Terminals	6.4 mm spade, not-inline

SIGNS THE MAGNETRON HAS FAILED

What you see	What it means
Oven runs normally but food stays cold	Classic magnetron failure – no microwave output
Loud humming or buzzing under load	Magnetron breaking down internally
Burning smell during a cycle	Overheated magnetron or scorched antenna dome
Heats briefly then stops heating	Magnetron cutting out as it warms up
Arcing or sparking inside the cavity	Failed antenna cap – replace the magnetron

COMPATIBLE LG MODELS (41)

✔ MC-8483NL	✔ MC-924JA	✔ MC-924JLA	✔ MC-9283JLR
✔ MC-9283JR	✔ MH6589DRL	✔ MH6589DRW	✔ MH7949CW
✔ MJ3284UAB	✔ MS-304W	✔ MS-314SCE	✔ MS-364SCE
✔ MS-3443A	✔ MS-3443AS	✔ MS-3443ASC	✔ MS-3444DPS
✔ MS-3445DPS	✔ MS-3446VR	✔ MS-3446VRL	✔ MS-3446VRW
✔ MS3042G1	✔ MS3042X1	✔ MS3446VRB	✔ MS3447GR
✔ MS3447GRS	✔ MS3448GRK	✔ MS3448XRK	✔ MS3448XRS
✔ MS3840SR	✔ MS3840SRB	✔ MS3840SRSK	✔ MS3842XRL
✔ MS3846VRL	✔ MS3848XRSK	✔ MS3882XRSK	✔ MS3946SS
✔ MS4040SRB	✔ MS4042GR	✔ MS4042GRS	✔ MS4042XRS
✔ MS4082XRS	✔ LCRM1240ST	✔ LCRM1240SW	✔ LCRM1240SB
✔ LMA1150SV	✔ LMA1180ST	✔ LMA1560SB	✔ LMAB1240ST
✔ LMA2111ST	✔ LMA2112WT	✔ MV1610ST	✔ MV1610WW
✔ MVH1615WW	✔ MV1501B	✔ MV1502W	✔ MV1502B
✔ MA1011W	✔ MA1012W	✔ MA1152W	✔ MA1273M
✔ MA1417B	✔ MA1502B	✔ MA1572M	✔ MA1905W
✔ MA1905B	✔ MA2003W	✔ MA2117B	✔ MA972MW
✔ MV1715W	✔ MV1725B	✔ MV1725W	✔ MV1735W
✔ MV1735B	✔ LRM1230B	✔ LRM1230W	✔ LRM1250B
✔ LRM1250W	✔ LRM1260SW	✔ LRM2060ST	✔ LRDM1240W
✔ LRMP1270ST	✔ LTRM1240SB	✔ LTRM1240SW	✔ LTRM1240ST
✔ MS1243AZ	✔ MS1244AL	✔ MS1245ACS	✔ MS1245QR
✔ MS1545ABS	✔ MD1244AC	✔ MD1244AT	✔ MV1541AY
✔ MV1541X	✔ MV1645EGL	✔ MV1646EG	✔ MV1646EGY
✔ MV1840ASDL	✔ MV2040ASD	✔ MC1043ACSL	✔ MC156SH
✔ MC156SJ	✔ MH1517CV	✔ MS113XE	✔ MS144YE
✔ MS152XC	✔ MS184SJ	✔ MS214YE	✔ MS217SJ
✔ LCSP1110ST	✔ LCS1112ST	✔ LCS1112SW	✔ LCS1112SB
✔ LCS1410SW	✔ LCRT1510SV	✔ LCRT1513ST	✔ LCRT1513SB
✔ LCRT1513SW	✔ LCRT2010ST	✔ LMV1813ST	✔ LMV1813SB
✔ LMV1813SW	✔ LMV1825SB	✔ LMV1925SB	✔ LMV1976ST
✔ LMV2015ST	✔ LMV2015SB	✔ LMV2015SW	✔ LMV2031ST
✔ LMV2031SB	✔ LMV2031SW	✔ LMV2031SS	✔ LMV2031BD
✔ LMV2053ST	✔ LMV2053SB	✔ LMV2053SW	✔ LMV2061SB
✔ LMV2073ST	✔ LMV2073BB	✔ LMV2073WW	✔ LMV2083ST
✔ LMV2083SB	✔ LMV2083SW	✔ LMH1017CVST	✔ LMH1517CV
✔ LMH1517CVST	✔ LMH2016ST	✔ LMH2016SB	✔ LMH2016SW
✔ LMH2235ST	✔ LMHM2017ST	✔ LMHM2017SB	✔ LMHM2017SW
✔ LMHM2237ST	✔ LMHM2237BD	✔ LMVM1935SB	✔ LMVM1935SW
✔ LMVM1935T	✔ LMVM2033ST	✔ LMVM2033SB	✔ LMVM2033SW
✔ LMVM2033BM	✔ LMVM2033BD	✔ LMVM2055ST	✔ LMVM2055SB
✔ LMVM2055SW	✔ LMVM2075ST	✔ LMVM2075SB	✔ LMVM2075SW
✔ LMVM2085ST	✔ LMVM2085SB	✔ LMVM2085SW	✔ LSMH207ST
✔ LSRM2010ST	✔ LSRM2010BD	✔ LSWC307ST	✔ LWC3063ST
✔ LWC3063BD	✔ MVEL2033D	✔ MVEL2033F	✔ MVEL2125D
✔ MVEL2125F	✔ MVEL2137D	✔ MVEL2137F	✔ MZBZ1715S
✔ MZBZ1715D	✔ CPLMB186CC

ALSO FITS – OTHER BRANDS

Brand	Model
GE	PEB9159SFSS
Smeg	SA37X
Daewoo	KOR-1B4K9S04
Kenmore	721.61282100, 721.61283100, 721.62252200, 721.62259200, 721.62342200, 721.62344300, 721.62349200, 721.62463200, 721.63252300, 721.63263300, 721.63292300, 721.63652300, 721.63992300, 721.63999300, 721.64282300, 721.64283300, 721.65052400, 721.65222400, 721.66222500, 721.66229500, 721.66292500, 721.66339800, 721.66463500, 721.67902600, 721.69122010, 721.79152010, 721.79202010, 721.80002000, 721.80009400, 721.80012400, 721.80014000, 721.80019000, 721.80602500, 721.80802400, 721.80833500, 721.81622600, 721.85062010, 721.85063010, 721.86002010, 721.87583610, 721.88502800

This magnetron is also used in a number of Samsung and other Korean-built microwave ovens. If your appliance parts list shows 6324W1A001L, 2M246-050GF or any of the numbers above, this is the correct part.

SAFETY – PLEASE READ. A microwave oven capacitor can hold a lethal charge long after the appliance is unplugged. Magnetron replacement should only be carried out by a qualified appliance technician. Always compare the old magnetron against the new one for terminal position, magnet size and mounting flange before fitting. If your model is not listed above, send us your full model number and we will confirm before you buy.
