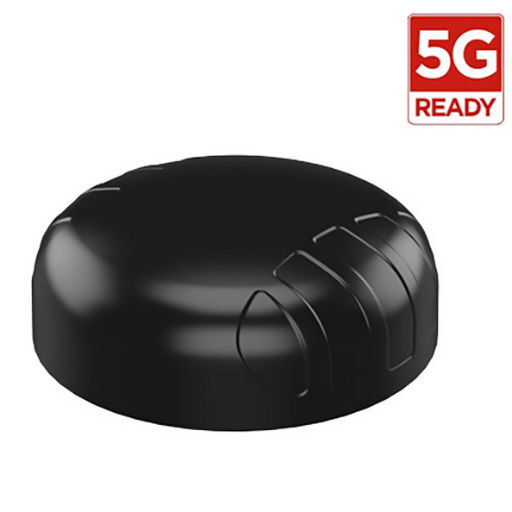

This is a 6dBi IOT/M2M LTE ANTENNA - 698-3800MHz WITH 2M CABLE of brand Blackhawk.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 6dBi IOT/M2M LTE ANTENNA - 698-3800MHz WITH 2M CABLE
Notes Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The PUCK-2 consists of a 2-in-1 antenna system within a single housing, featuring 2×2 MIMO LTE antennas (for 2G/3G/4G) that cover the 698 to 3800 MHz band which includes the most popular international LTE bands. The PUCK exceeds the performance of many competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.2-in-1 LTE high-performance multi frequency2G/3G/4G/LTE antenna (5G Ready)LTE (2X2 MIMO)Wideband – covers wide frequency band, incl. 3.5 GHz CBRS bandGround plane independentRobust, vandal-resistant and waterproof (IP 68)Ideal for transportation, marine and IoT/M2M useUltra-versatile mounting options for easy installation Comes with 2m HDF-195 cable SMA(m)
Cable2m HDF-195 coaxial
ConnectorSMA-M
Dimensions36x99mmØ
Freq.698-960 / 1710-2700 / 3200-3800 MHz
Gain6dBi (max)
MountingAdhesive surface mounting & magnetic mount
ManufacturerBlackhawk
SKU NoWES_ANT-PY-00011_1
