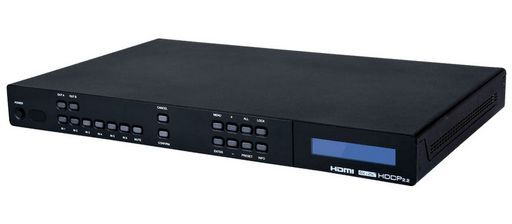

6x2 HDMI MATRIX 4K60 WITH IP CONTROL & AUDIO EXTRACTION - CYPRESS
RS232 ETHERNET WEB GUI IR REMOTE CONTROL
SKU code: WES_CPLUS-V6H2HP_1
This is a 6x2 HDMI MATRIX 4K60 WITH IP CONTROL & AUDIO EXTRACTION - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 6x2 HDMI MATRIX 4K60 WITH IP CONTROL & AUDIO EXTRACTION - CYPRESS |
| Notes | RS232 ETHERNET WEB GUI IR REMOTE CONTROL This matrix provides the ability to connect up to six 4K UHD HDMI sources to up to two 4K UHD HDMI displays and freely switch between them. This unit comes with full support for 18Gbps (600MHz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 16-bit Deep Colour (up to 1080p60), HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0 specification. With a comprehensive EDID management feature that includes the ability to select between six built in default EDIDs, or an EDID copied from a connected sink device, this matrix can solve many interconnectivity problems. Added flexibility comes from the ability to extract audio from each HDMI output’s source and output it as optical digital audio (LPCM 2.0 and standard Bitstream only). Six fully configurable presets are also provided to simplify the routing process. This unit provides an intuitive set of front panel controls with associated LCD, as well as RS-232, Telnet, WebGUI, and IR remote control options.HDMI input and output with 18Gbps (600MHz) 4K UHD supportDVI 1.0 compatible with the use of an HDMI-DVI adaptorHDCP 1.4 and 2.2 compliantSupports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) and 4096×2160@60Hz (4:4:4, 8-bit)Supports 16-bit Deep Color up to 1080p606 HDMI inputs and 2 HDMI outputsSupports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD BitstreamDisplay any of 6 high-definition sources on up to 2 HDTV displays simultaneouslyOptical audio extraction paired with each HDMI output (LPCM 2.0 or Bitstream only)Supports 6 internal EDIDs or 2 external EDIDs copied from connected devicesControllable via front panel buttons with LCD, WebGUI, Telnet, RS-232, and IR remote |
| Description | 4K HDR 6×2 HDMI Matrix with Audio Extraction |
| 4K | Yes |
| Bandwidth | 18Gbps |
| Cable Length | 5M (4K) |
| Chassis. | Metal |
| Controller | 1x IR Extender, 1x RS232, 1x RJ45(Control) |
| Dimensions | 482x276x52mm |
| EDID | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 6x HDMI |
| IR | Yes |
| Max Res. | 4K@60Hz (4:4:4) |
| Output | 2x HDMI, 2xTOSLINK |
| RS-232 | Yes |
| Size | 482x276x52mm |
| Manufacturer | Cypress |
| SKU No | WES_CPLUS-V6H2HP_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CPLUS-V6H2HP |
| SKU | WES_CPLUS-V6H2HP_1 |
| Brand | Cypress |
