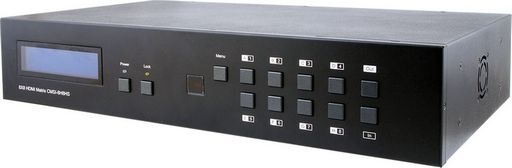

This is a 8×8 HDMI MATRIX 1080P of brand Cypress.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 8×8 HDMI MATRIX 1080P
Notes The 8 by 8 HDMI™ Matrix supports the transmission of video signals (up to 1080p Full HD / 1920×1200@60Hz) with multi-channel digital audio from up to eight high definition sources to up to eight HDMI outputs, allowing any source to be independently displayed on any monitor. Also, the unit can be controlled via IR, RS-232, Telnet, Web GUI or from the front panel buttons.HDMI, HDCP 1.1 and DVI compliantSupports HDMI features including 3DSupports LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio transmissionSupports resolutions VGA~WUXGA and 480i~1080p dependent upon the output display’s EDID settingsSupports 3D signal display dependent upon the output display’s EDID settingsSupports HDMI input up to 15 metres at 8-bit resolution or 10 metres at 12-bit resolution and HDMI output up to 15 metres at 8-bit/12-bitSupports IR extensionSupports RS-232, remote control, on-panel control and IP Control (Telnet)2U size design
Input8x HDMI
Output8x HDMI
3DYes
CEC-
EDIDYes
HDCPYes
HD AudioYes
4K-
ARC-
HEC-
Deep ColourYes
ManufacturerCypress
Brand.Cypress
InterfaceHDMI
SKU NoWES_CMSI-8H8HS_1
