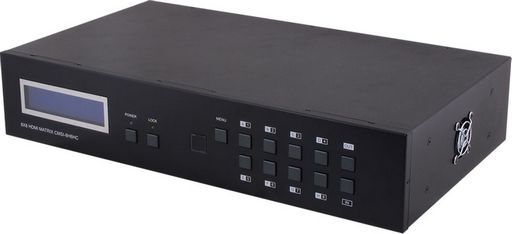

8×8 HDMI MATRIX 1080P WITH SIMULTANEOUS HDMI & DUAL CAT6 OUTPUTS - CYPRESS
HDMI OVER DUAL CAT6 TRANSMITTERS X8
SKU code: WES_CMSI-8H8HC_2
This is a 8×8 HDMI MATRIX 1080P WITH SIMULTANEOUS HDMI & DUAL CAT6 OUTPUTS - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 8×8 HDMI MATRIX 1080P WITH SIMULTANEOUS HDMI & DUAL CAT6 OUTPUTS - CYPRESS |
| Notes | HDMI OVER DUAL CAT6 TRANSMITTERS X8 The 8 by 8 HDMI™ Matrix with simultaneous HDMI and CAT6 outputs connects eight HDMI sources to up to 16 displays. This matrix features 8 HDMI outputs and each HDMI output is mirrored to provide a Dual CAT6 output which runs simultaneously. Connect a CH-1106RX Receiver (sold separately) to each of the Dual CAT outputs to extend the HDMI signal up to 45m for multi-room connectivity. This matrix switcher can be controlled via the supplied IR Remote Control, RS-232, Telnet, Web GUI or by using the selection buttons on the front panel. This device supports ‘Deep Colour’, High Definition Audio, and 3D signal compatibility. Supports resolutions up to 1920x1200px and HD resolutions up to 1080p dependent upon the display’s EDID settings. 2U size design.HDMI, HDCP 1.1 and DVI compliantSupports HDMI 3D pass-throughSupports resolutions from VGA~WUXGA@60RB and HD resolutions from 480i~1080p dependent upon the display’s EDID settingsSupports transmission distances up to 45 metres through Dual CAT6 cablesSupports 3D signal display dependent upon the display’s EDID settingsSupports simultaneous HDMI and CAT6 outputsSupports HDMI input up to 15 metres at 8-bit resolution or 10 metres at 12-bit resolution; CAT6 output up to 45 metres at 8-bit resolutionSupports IR pass-back through CAT6 for source controlSupports RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)2U size designSupports external and internal EDID settingsSupports LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio transmission Requires dual CAT6 to HDMI receivers. |
| Input | 8x HDMI |
| Output | 8x Dual CAT6, 8x HDMI |
| 3D | Yes |
| CEC | - |
| EDID | Yes |
| HDCP | Yes |
| HD Audio | Yes |
| 4K | - |
| ARC | - |
| HEC | - |
| Deep Colour | Yes |
| Max Res. | 1080p |
| Cable Length | 45M @ 8-bit, 15M @ 12-bit |
| Max. | 45M/8Bit or 15M/12Bit |
| Brand. | Cypress |
| Manufacturer | Cypress |
| Cable | Dual CAT6/7 |
| Power | PoC |
| Interface | TX Matrix 8x8 |
| IR | Yes |
| SKU No | WES_CMSI-8H8HC_2 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CMSI-8H8HC |
| SKU | WES_CMSI-8H8HC_2 |
| Brand | Cypress |
