8×8 HDMI OVER CAT5E/6/7 MATRIX WITH 48V POE AND LAN SERVING
8×8 HDMI OVER CAT5E/6/7 MATRIX WITH 48V POE AND LAN SERV
SKU code: WES_CMSI-18H8CVE_1

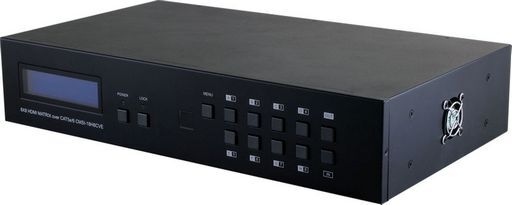

This is a 8×8 HDMI OVER CAT5E/6/7 MATRIX WITH 48V POE AND LAN SERVING of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 8×8 HDMI OVER CAT5E/6/7 MATRIX WITH 48V POE AND LAN SERVING |
| Notes | The CMSI-18H8CVE is a HDBaseT Matrix which supports the transmission of Full HD video and digital audio over a single CAT5e/6/7 cable (up to 100m) for each output. It also supports high resolution digital audio formats, 3D content, Power over Ethernet (PoE) and LAN serving.HDMI, HDCP 1.1 and DVI compliantSupports HDMI 3D features for compatible sources and displaysSupports PC resolutions of VGA to WUXGA and HDTV resolutions of 480i to 1080p dependent upon the output display’s resolution capabilitiesSupports distances of up to 100m for industry standard CAT5e/6/7 cablesSupports PoE (Power over Ethernet) on compatible receivers onlySupports HDMI input up to 15 metres at 8-bit or 10 metres at 12-bit resolutionSupports bi-directional IR passthrough from the source and display locationsSupports control of the matrix via RS-232, IR remote control, on-panel buttons and IP Control (Telnet/Web GUI)Supports LAN serving to all compatible HDBaseT ReceiverSupports selection of Standard (Fixed) or TV (Downstream) EDID settingsSupports pass-through of High-definition Audio: LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio transmission |
| Description | The CMSI-18H8CVE is a HDBaseT Matrix which supports the transmission of Full HD video and digital audio over a single CAT5e/6/7 cable (up to 100m) for each output. It also supports high resolution digital audio formats, 3D content, Power over Ethernet (PoE) and LAN serving. |
| Input | 8x HDMI |
| Output | 8x CAT5e/6/7 |
| IR | Yes |
| Cable Length | 100M |
| 3D | Yes |
| HDCP | Yes |
| PoE | Yes |
| Ethernet | Yes |
| HD Audio | Yes |
| 4K | - |
| RS-232 | Yes |
| Manufacturer | Cypress |
| CEC | - |
| EDID | - |
| Brand. | Cypress |
| IR Extension | Yes |
| SKU No | WES_CMSI-18H8CVE_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CMSI-18H8CVE |
| SKU | WES_CMSI-18H8CVE_1 |
| Brand | Cypress |
