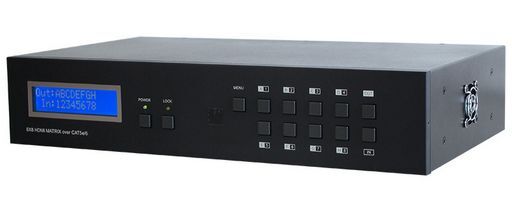

8×8 HDMI OVER HDBaseT MATRIX 1080P WITH LAN SERVING - CYPRESS
HDBaseT EXTENDED CAT5/6 UP TO 100M WITH PoC AND LAN SERV
SKU code: WES_CMSI-8H8CVE_1
This is a 8×8 HDMI OVER HDBaseT MATRIX 1080P WITH LAN SERVING - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 8×8 HDMI OVER HDBaseT MATRIX 1080P WITH LAN SERVING - CYPRESS |
| Notes | HDBaseT EXTENDED CAT5/6 UP TO 100M WITH PoC AND LAN SERVING The HDBaseT™ 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 1080p Full HD and 1920x1200@60Hz), multi-channel digital audio and control via IR, RS-232 or Telnet and Web GUI from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 100m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3DTV and 3D source. Power over Ethernet (PoE) support means that compatible receivers do not need their own power supplies allowing for greater flexibility in installations and Ethernet support allows devices such as Smart TVs to be connected to the network.HDMI, HDCP 1.1 and DVI compliantSupports HDMI 3D and 4Kx2K featuresSupports resolutions VGA~WUXGA and 480i~1080pSupports distances up to 100 metres through CAT6/7 cablesSupports PoE (Power over Ethernet) on compatible receivers only5Play™ convergenceSupports HDMI input up to 15M at 8-bit or 10M at 12-bit Supports bi-directional IR from input and output locationsRS-232, remote IR, on-panel, IP Control (Telnet & Web GUI)Supports LAN serving function through the LAN/CONTROL port2U size design 438x255x93mmSupports external and internal EDID settingsSupports LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Compatible Receivers: CH-501RX, CH-506RX, CH-506RXWP, CH-507RX, CH-507RXBD, CH-507RXWP, CH-507RXWPBD |
| Input | 8x HDMI |
| Output | 8x CAT5e/6/7 |
| 3D | Yes |
| HDCP | Yes |
| RS232 Extension | Yes |
| IR Extension | Yes |
| PoE | Yes |
| Ethernet | Yes |
| Extender Cable | CAT5e/6/7 |
| HD Audio | Yes |
| RS-232 | Yes |
| EDID | Yes |
| Interface | HDMI |
| IR | Yes |
| Max Res. | 1080p |
| 4K | - |
| Cable Length | 100M |
| Cascade | - |
| CEC | - |
| Chassis. | Metal |
| Compliance | 1.3+ |
| Compatible with | CH-501RX, CH-506RX, CH-506RXWP, CH-507RX, CH-507RXBD, CH-507RXWP, CH-507RXWPBD |
| Manufacturer | Cypress |
| SKU No | WES_CMSI-8H8CVE_1 |
