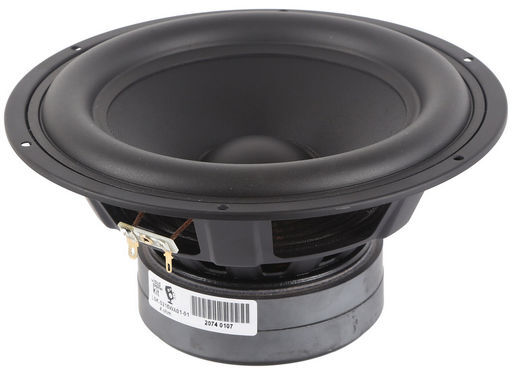

8 BALANCED DRIVE PAPER CONE SUBWOOFER
Wavecor Balanced Drive Technology
SKU code: WES_S215WA01-01_1
This is a 8 BALANCED DRIVE PAPER CONE SUBWOOFER of brand Wavcor.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 8 BALANCED DRIVE PAPER CONE SUBWOOFER |
| Notes | Wavecor Balanced Drive Technology The Wavecor SW215BD01 is an 8 paper cone subwoofer that was designed specifically for high performance compact subwoofer applications where sound quality and low distortion are the priorities. Utilises balanced drive motor technology for dramatically reduced distortion.The Wavecor Balanced Drive Technology Line of speaker units designed with optimized motor symmetry. The Balanced Drive line of loudspeaker transducers is yet another example of Wavecor paying attention to every detail. Instead of following the common way by designing loudspeaker drivers “as usual” Wavecor have spent significant research time further optimizing one of the most important parts of a oudspeaker transducer: The motor. The motivation for the work was our continuous search for better sound and in this project we set the target to reduce the harmonic distortion generated by nonsymmetrical motor structures.Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortionRigid air-dried paper cone to ensure piston motion even at high levels - for reduced distortionLow-loss suspension (high Qm) for better reproduction of details and dynamicsRigid steel chassis with extensive venting for lower air flow speed reducing audible distortionConex spider for better durability under extreme conditionsVented centre pole with dual flares for reduced noise level at large cone excursionsLarge motor structure for better control and power handling |
| Cms | 0.54mm/N |
| Coil | 39mmØ |
| Depth | 104mm |
| Diam. | 215mmØ |
| Fs | 33Hz |
| Impedance | 4Ω (Re 3.3Ω) |
| Impedance (Ohm) | 4 ohm |
| Inch | 8.5 |
| Le | 1.2mH |
| Manufacturer | Wavcor |
| Power | 400W |
| Power (RMS) | 200+ Watt |
| Price Type | each |
| Prms | 400W |
| Qes | 0.51 |
| Qms | 11 |
| Qts | 0.49 |
| QTY | 1 |
| Re | 3.3Ω |
| Sd | 206cm² |
| Sens. | 89dB |
| Size | 8½' |
| Type | Subwoofer |
| Vas | 26.1L |
| Zn | 4Ω |
| SKU No | WES_S215WA01-01_1 |
