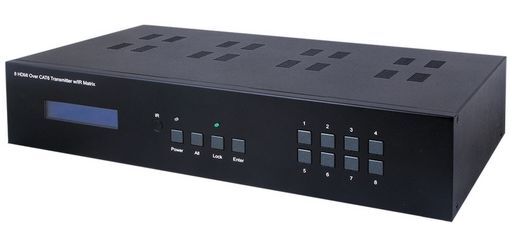

8 HDMI TO 8 HDBaseT POINT-TO-POINT TRANSMITTER WITH IR 4K30 - CYPRESS
UP TO 100M WITH IR MATRIX CROSS-POINT AND PoC
SKU code: WES_CSI-8H8CV2IR_1
This is a 8 HDMI TO 8 HDBaseT POINT-TO-POINT TRANSMITTER WITH IR 4K30 - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 8 HDMI TO 8 HDBaseT POINT-TO-POINT TRANSMITTER WITH IR 4K30 - CYPRESS |
| Notes | UP TO 100M WITH IR MATRIX CROSS-POINT AND PoC The 8 HDMI over CAT6 Point-to-Point Transmitter (with IR Matrix) offers advanced point-to-point distribution of HDBaseT signals up to lengths of 100m (1080p) over single CAT5e/6/7 cable along with PoE (Power over Ethernet) feature (6.25A max.). It supports the transmission of Video (up to 4K @30 Hz) with multichannel digital audio, up to eight pairs of high definition source and CAT5e/6/7 output. Includes RS232 control plus RS232 insertion. There is a built-in crosspoint IR matrix providing mapping the additional control over 8-in/ 8-out IR channels. 2x IR senders, 2x IR receivers included. 24V 6.25A(max.) power pack included.HDMI, HDCP1.1 and DVI compliantSupports HDMI 3D, 4k x 2k featuresSupports Stereo digital audio signal input and outputSupports high bit-rate audio up to 192kHzSupports resolutions VGA~WUXGA and 480i~1080p dependent upon the output display’s EDID settingsSupports extension up to 100 meters through CAT5e/6Supports 3D signal display dependent upon the output display's EDID settingsSupports HDMI input up to 10 meters at 8-bit resolution or 3 meters at 12-bit resolutionSupports bi-directional IR from input and output locationsSupports RS-232, remote control and on-panel controlSupports PoE (Power over Ethernet) on compatible receivers only2U size design |
| Description | HDBaseT 8 WAY HDMI point to point Transmitter with 8x8 IR Matrix |
| Input | 8x HDMI |
| Output | 8x CAT5e/6/7 |
| 3D | Yes |
| HDCP | Yes |
| RS232 Extension | No |
| IR Extension | Yes |
| PoE | Yes |
| Ethernet | No |
| Extender Cable | CAT5e/6/7 |
| HD Audio | Yes |
| 4K | Yes |
| Type | Transmitter |
| RS-232 | - |
| Max Res. | 4K @ 30Hz |
| IR | Yes |
| Cable Length | 100M (@ 1080p) |
| Compatible with | CH-501RX, CH-506RX, CH-506RXWP, CH-507RX, CH-507RXBD, CH-507RXWP, CH-507RXWPBD |
| Manufacturer | Cypress |
| SKU No | WES_CSI-8H8CV2IR_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CSI-8H8CV2IR |
| SKU | WES_CSI-8H8CV2IR_1 |
| Brand | Cypress |
