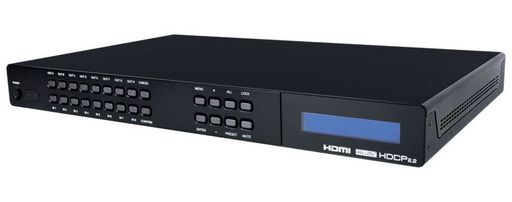

This is a 8x8 HDMI MATRIX 4K60 WITH IP CONTROL & USB POWER - CYPRESS of brand Cypress.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 8x8 HDMI MATRIX 4K60 WITH IP CONTROL & USB POWER - CYPRESS
Notes RS232 ETHERNET WEB GUI IR REMOTE CONTROL This 8 by 8 Matrix provides the ability to connect up to eight 4K UHD HDMI sources to up to eight 4K UHD HDMI displays and freely switch between them. This unit comes with full support for 18Gbps (600Mhz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 16-bit Deep Colour up to 1080p@60Hz, HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0a specification. With a comprehensive EDID management feature that includes the ability to select between built in default EDID, EDID copied from connected sink devices, as well as a configurable EDID, this matrix can solve many interconnectivity problems.This unit also features eight USB ports which supply up to 5V/1A power for use with connected AOC (Active Optical Cable) fibre cable extenders. By using these specialized cables your HDMI content can be extended much further than would be possible with normal HDMI cables. The built-in OSD has the ability to display user editable general information text so each output can display up to 2 lines of customised text on top of the video source in the colour of your choice. This unit provides an intuitive set of front panel controls with an LCD as well as RS-232, Telnet, WebGUI, and IR remote control options.HDMI 2.0a and DVI 1.0 compliantHDCP 1.x and 2.2 compliantEight HDMI inputs matrixed to eight HDMI outputs with 18Gbps (600MHz) 4K UHD supportSupports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit)Supports 16-bit Deep Color up to 1080p@60HzSupports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD BitstreamSupports six internal EDIDs, eight external EDIDs copied from connected devices, and four user provided EDIDsEight USB ports to supply 5V/1A power to AOC (Active Optical Cable) fiber extension cablesOSD with user customizable information textControllable via front-panel buttons with LCD, WebGUI, Telnet, RS-232, and IR remote
Description4K HDR 8×8 HDMI Matrix with USB Power Supplying
4KYes
Bandwidth18Gbps
Cable Length5M (4K)
Chassis.Metal
Controller1x IR In, 1x RS-232, 1x USB(service), 1x RJ45(Control)
Dimensions438x274x49mm
EDIDYes
HD AudioYes
HDCPYes
Input8x HDMI
IRYes
Max Res.4K@60Hz (4:4:4)
Output8×HDMI, 8x USB(power: 5V 1A)
RS-232Yes
Size482x274x49mm
ManufacturerCypress
SKU NoWES_CPLUS-V8H8HP_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN CPLUS-V8H8HP
SKU WES_CPLUS-V8H8HP_1
Brand Cypress
