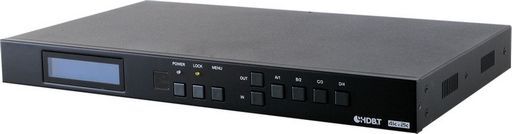

8x8 HDMI OVER HDBaseT MATRIX 4K30 WITH 24V PoE - CYPRESS
CYPRESS
SKU code: WES_CMPRO-U4H4CVPL_1
This is a 8x8 HDMI OVER HDBaseT MATRIX 4K30 WITH 24V PoE - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 8x8 HDMI OVER HDBaseT MATRIX 4K30 WITH 24V PoE - CYPRESS |
| Notes | CYPRESS The 4x4/8x8 HDMI Matrix over CAT5e/6/7 supports transmission of video up to 4K30, 3D contents, multi-channel digital audio and controls signals like IR flows and RS-232. The matrix supports high resolution digital audio formats such as LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio. The matrix uses HDBaseT technology which allows a transfer distance of around 60m using CAT5e/6/7 cables. The matrix can be controlled by the integrated keypad, by IR Control, by RS232 and by GUI and Telnet. The Power over cable (PoE) feature can power compatible receivers, providing greater flexibility in installations.HDMI, HDCP1.1 and DVI compliantSupports PC resolutions of VGA to WUXGA and HDTV resolutions up to 4K2K dependent upon the output display’s resolutionSupports HDMI 3D features for compatible sources and displaysSupports distances of up to 70 metres for industry standard CAT5e/6/7 cablesSupports HDMI cable input length up to 15 metres at 8-bit colour depth or 10 metres at 12-bit colour depthSupports bi-directional IR pass-through from the source and display locationsSupports control of the matrix via RS-232, IR remote control, on-panel buttons and IP Control (Telnet & Web GUI)Supports selection of Standard (Fixed) or TV (Downstream) EDID settingsSupports transmission of High-definition Audio: LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio transmission Compatible Receivers: CH-506RXL, CH-506RXPL, CH-513RXLN, CH-514RXLN |
| Description | This 4K2K capable HDBaseT™ 4 by 4 HDMI Matrix supports the transmission of video (resolutions up to 1080p/4K2K), multi-channel digital audio and source control via 2 way IR, RS-232 pass-through, from four HDMI sources to four HDBaseT outputs over a single CAT5e/6/7 cable (up to 60m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D source and 3D display. |
| Input | 4x HDMI |
| Output | 4x CAT5e/6/7 |
| IR | Yes |
| Cable Length | 60M |
| 3D | Yes |
| HDCP | Yes |
| PoE | Yes |
| Ethernet | - |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | Yes |
| Max Res. | 4K @ 30Hz |
| Compatible with | CH-506RXL, CH-506RXPL, CH-513RXLN, CH-514RXLN |
| CEC | - |
| EDID | - |
| Brand. | Cypress |
| Manufacturer | Cypress |
| SKU No | WES_CMPRO-U4H4CVPL_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CMPRO-U4H4CVPL |
| SKU | WES_CMPRO-U4H4CVPL_1 |
| Brand | Cypress |
