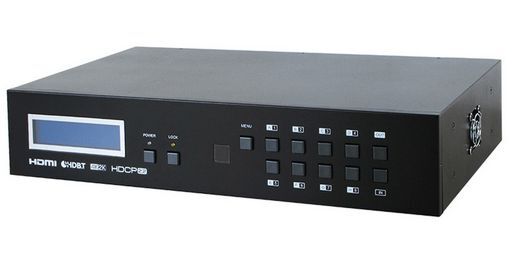

8x8 HDMI OVER HDBaseT MATRIX 4K30 WITH LAN SERVING
SKU code: WES_CMPRO-UA8H8CVE_1
This is a 8x8 HDMI OVER HDBaseT MATRIX 4K30 WITH LAN SERVING - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 8x8 HDMI OVER HDBaseT MATRIX 4K30 WITH LAN SERVING - CYPRESS |
| Notes | 8x8 HDMI OVER HDBaseT MATRIX 4K30 WITH LAN SERVING The 8 by 8 HDMI 4K UHD Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD & HDCP 2.2), multi-channel digital audio and control via IR, RS-232, Telnet or WebGUI from eight high-definition sources to eight outputs over a single CAT5e/6/7 cable (up to 100m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source. Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Power over Cable (PoC) function can power compatible receivers, providing greater flexibility in installations.8x HDMI input, 8x RJ-45 (HDBaseT) outputSupports distances up to 100 meters through CAT5e/6/7 cableHDMI (with 4K2K support), HDCP 2.2 and DVI compliantSupports PC resolutions up to WUXGA and HDTV resolution up to 4K2K (3840×2160@24/25/30Hz, 3840×2160@50/60Hz with YUV420, 4096×2160@24/25/30Hz & 4096×2160@50/60Hz with YUV420)Supports 3D signal bypassSupports passthrough of high-definition audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD & DTS-HD Master AudioSupports PoC (Power over Cable) on compatible receivers onlySupports bidirectional IR from inputs and output locationsSupports RS-232, IR remote control, on-panel control and IP control (Telnet/WebGUI)Supports LAN serving function through the LAN port2U size designCompliant with DVI sourceRequires HDBaseT to HDMI receivers Requires HDMI over HDBaseT receivers such as: CH-506RXPL |
| Description | The 8 by 8 HDMI 4K UHD Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD & HDCP 2.2), multi-channel digital audio and control via IR, RS-232, Telnet or WebGUI from eight high-definition sources to eight outputs over a single CAT5e/6/7 cable (up to 100m) for each output. It supports high resolution digital audio formats. |
| 4K | Yes |
| 3D | Yes |
| Cable Length | 100M |
| Ethernet | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 8x HDMI |
| IR Extension | Yes |
| Output | 8x CAT5e/6/7 |
| PoE | Yes |
| RS-232 | Yes |
| RS232 Extension | Yes |
| Max Res. | 4K @ 30Hz |
| Compatible with | CH-506RXPL |
| Manufacturer | Cypress |
| SKU No | WES_CMPRO-UA8H8CVE_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CMPRO-UA8H8CVE |
| SKU | WES_CMPRO-UA8H8CVE_1 |
| Brand | Cypress |
