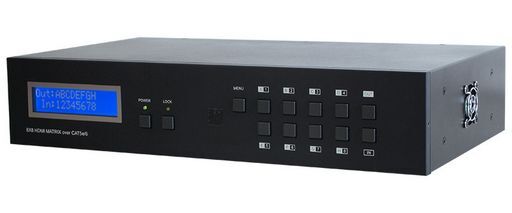

8x8 HDMI OVER HDBaseT MATRIX WITH IR, RS-232 & POC (PSE) - CYPRESS
HDBaseT UP TO 60M WITH PoC
SKU code: WES_CMSI-8H8CVPL_1
This is a 8x8 HDMI OVER HDBaseT MATRIX WITH IR, RS-232 & POC (PSE) - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 8x8 HDMI OVER HDBaseT MATRIX WITH IR, RS-232 & POC (PSE) - CYPRESS |
| Notes | HDBaseT UP TO 60M WITH PoC The matrix is an 8×8 HDMI over HDBaseT Matrix. Installers can switch and distribute up to 8 HDMI sources, and 2-Way IR to lengths of up to 60m using CAT5e/6/7 cable infrastructure. Control of the matrix is via IP, RS-232, IR remote, or manual selection buttons. This single box solution will enable an installer to confidently integrate an eight zone multi-room AV system. The matrix is designed to be used with the compatible receiver which enables the use of 2-Way IR control and 24V PoC (Power over Cable) features.Features 8x HDMI input and 8x RJ-45 (HDBaseT) output8x 3.5mm (IR receiver in), 8x 3.5mm (All IR in), 8x 3.5mm (IR out), 1x 3.5mm (All IR out)Supports all v1.4 HDMI resolutionsCommon supported resolutions - HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGAHDMI, HDCP, and DVI complaintSupports passthrough of all standard digital audio formats: LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream (up to 192kHz)Uncompressed data transfer over single CAT cable (60m via CAT5e/6/7)Supports HDMI input up to 15m at 1080p/8bit or 10m at 1080p/12bitSupports RS-232, 2-Way IR, manual selection buttons, and HDMI CEC control passthroughSelectable EDID settings - TV (downstream) and STD (fixed)Compact 2U rackmount designSupports IP controlSupports 3D signals Compatible Receivers: CH-501RX, CH-506RX, CH-506RXWP, CH-507RX, CH-507RXBD, CH-507RXWP, CH-507RXWPBD |
| Description | The matrix is an 8×8 HDMI over HDBaseT Matrix. Installers can switch and distribute up to 8 HDMI sources, and 2-Way IR to lengths of up to 60m using CAT5e/6/7 cable infrastructure. |
| Input | 8x HDMI |
| Output | 8x HDBaseT |
| Max Res. | 1080p |
| Compatible with | CH-501RX, CH-506RX, CH-506RXWP, CH-507RX, CH-507RXBD, CH-507RXWP, CH-507RXWPBD CH-501RX, CH-506RX, CH-506RXWP, CH-507RX, CH-507RXBD, CH-507RXWP, CH-507RXWPBD |
| Manufacturer | Cypress |
| SKU No | WES_CMSI-8H8CVPL_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CMSI-8H8CVPL |
| SKU | WES_CMSI-8H8CVPL_1 |
| Brand | Cypress |
