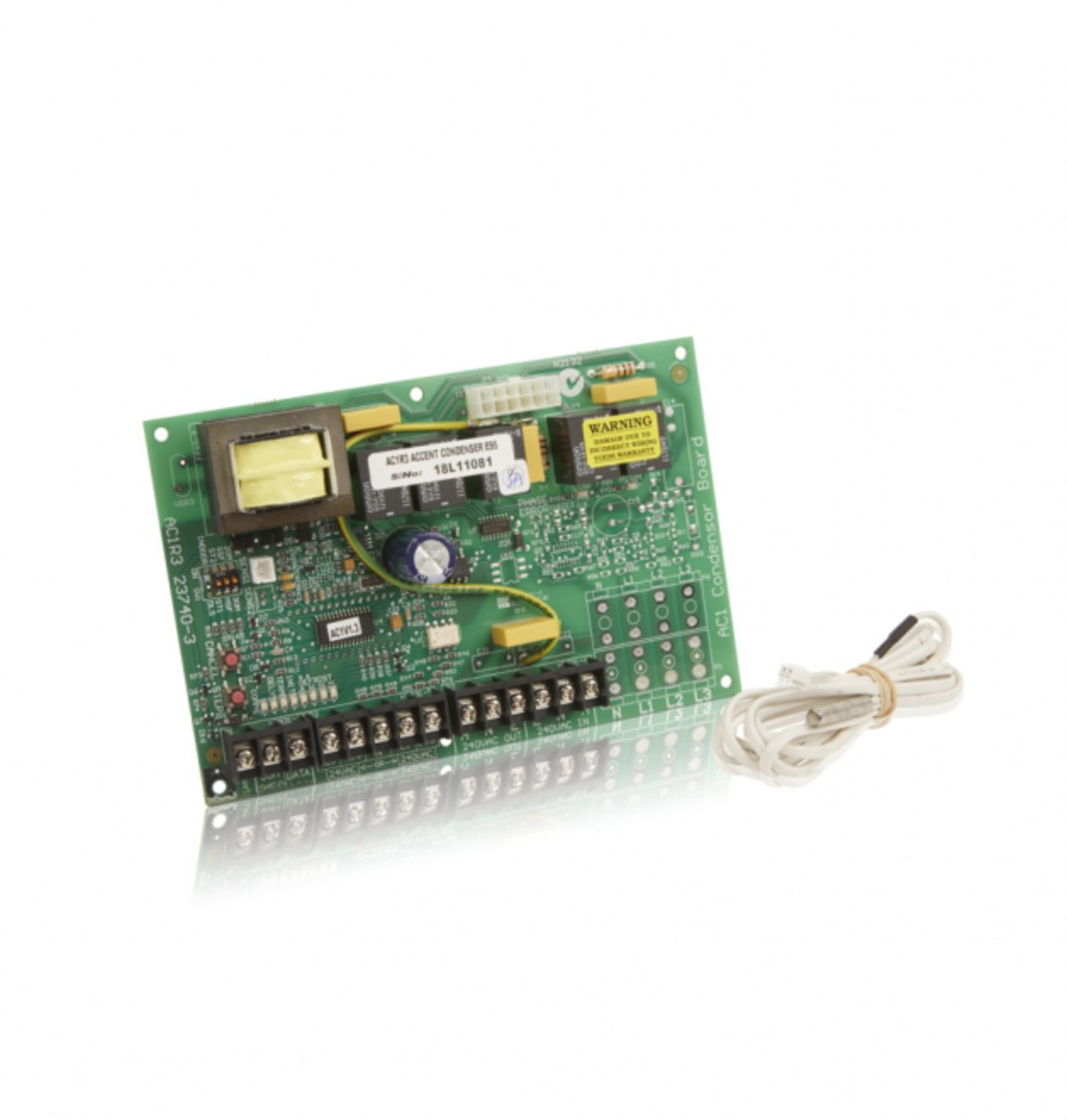

AIR CONDITIONER ACTRON AC1R2 R3 CONDENSER BOARD (ACCENT) FINAL
Brand: ActronAir
SKU code: EBY_274135863276
This is a replacement part for ActronAir. It is suitable for ActronAir - Air Conditioner.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | AIR CONDITIONER ACTRON AC1R2 R3 CONDENSER BOARD (ACCENT) FINAL |
| Notes | ACTRON AC1R2 R3 CONDENSER BOARD (ACCENT) FINAL ACTRON CONTROLS AC1R3 ACCENT CONDENSOR BOARD FINAL Actron P/N: AFR-AC1R3-1 replacing AC1R3 23740-3 (old) & AFR-AC1R2-1 (new) The AC1 boards are interchangeable Actron: “The AC1 boards are interchangeable the printing on the board will say AC1R3 but we have made them as the AC1R2 as we never populated part of the board that makes them the R3” The AC1 Condensor Management System communicates with the BM8 Fan Coil Controller via a 2-wire data cable. The BM8 RUN Led will Flash ON/ OFF: if the AC1 is in De-Ice, during the Compressor Anti-Cycle Delay, during the HP/LP Trip Delay (displays "E-C" or if Data Communication is not present (displays "E-D"). The red ERR Led is normally OFF, COMMS Led is blinking to indicate Data Communication |
| Suitable Brand | ActronAir |
| Suitable Applicance Class | Air Conditioner |
| Suits to | AC1R3 23740-3 (old) & AFR-AC1R2-1 (new) |
| Model | AC1R3 23740-3 (old) & AFR-AC1R2-1 (new) |
| MPN | AC1R3 23740-3 (old) & AFR-AC1R2-1 (new) |
| Mounting Location | LM7,AMZR4,AC1R3 23740-3 (old) & AFR-AC1R2-1 (new) |
| Brand | ACTRON |
| Heating System | Split System |
| Number of Compressors | 1 |
| Voltage | 230 |
| UPC | Does not apply |
| SKU No | EBY_274135863276 |
