AIR CONDITIONER ACTRON OUTDOOR PCB BOARD EXCLIPS, ACCENT,PIONEER - AFS-D8CPUR3-1
Brand: ActronAir
SKU code: EBY_293371482915
This is a replacement part for ActronAir. It is suitable for ActronAir - Air Conditioner.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | AIR CONDITIONER ACTRON OUTDOOR PCB BOARD EXCLIPS, ACCENT,PIONEER - AFS-D8CPUR3-1 |

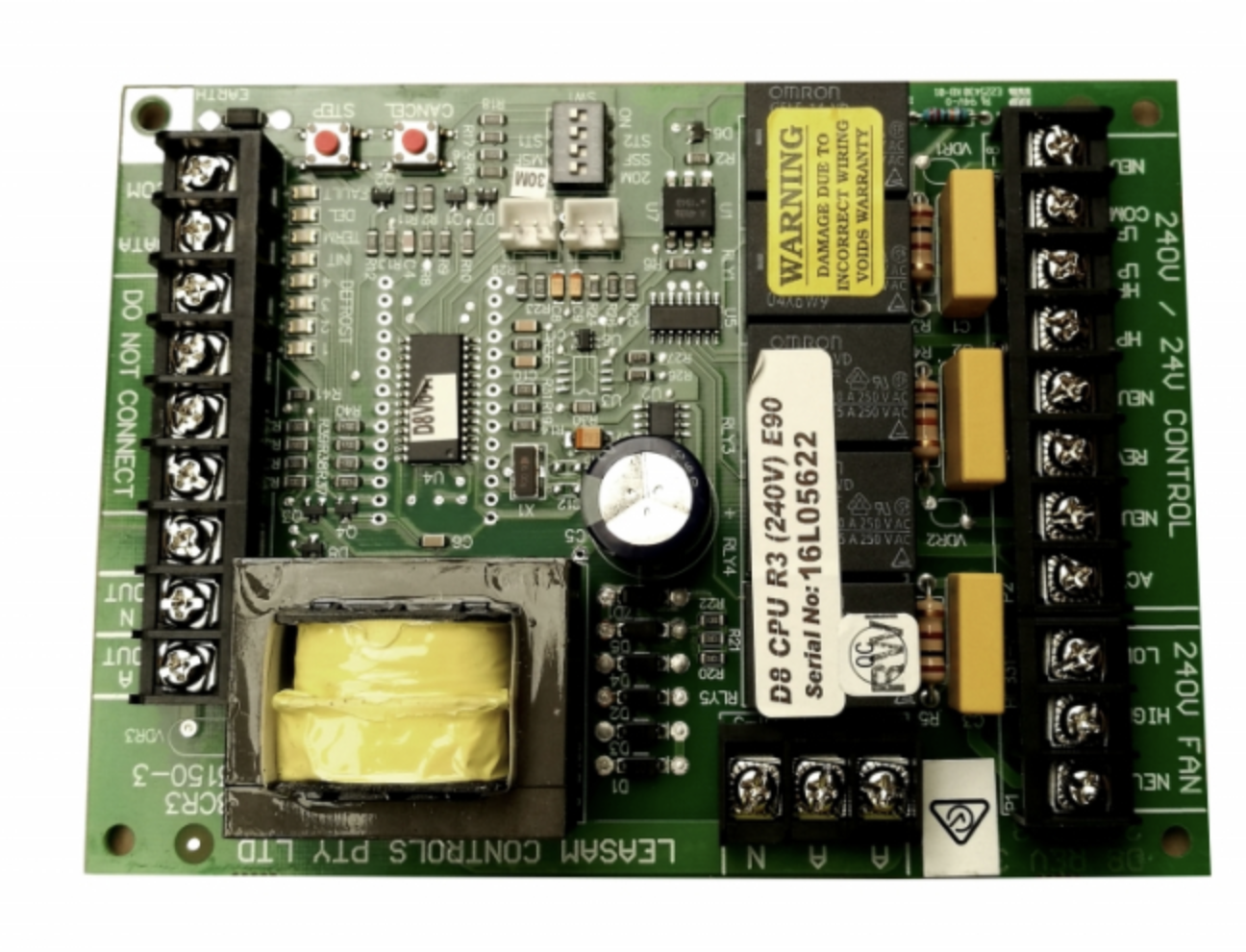

| Notes | OUTDOOR PCB BOARD EXCLIPS , ACCENT ,PIONEER D8CPU Condenser Management System Actron P/N: REPLACEMENT AFR-D8CPUR3-1 FOR AFS-D8CPUR3-1 Actron Controls D8CPU3 "inc Sensor" suits (Elipse,Pioneer,Accent) Overview: The D8CPU Board is a complete solution for condenser management requirements and is designed to be installed at factory level. The D8 is interfaced directly at Data level to the nominated Leasam Control. An optional Manual Input Card is available to interface with other thermostats or other types of control systems. The D8CPU Board is designed to minimize wiring by providing all the connections to the HP/LP safeties, Compressor Contactor, 4Way Valve, Condenser fan and control fuse. Operating Features: 1: Defrost Control features. 2: Defrost hold off time. 3: Defrost confirmation time. 4: Defrosts on time and/or temperature. 5: Residual water removal from condenser coil. 6: Indoor coil preheat cycle. 7: Two-speed Condenser fan control option. 8: Compressor Anti Cycle Timer. 9: High/ Low-Pressure safety trip protection. 10: Low-Pressure bypass on startup. 11: Random start time on mains power up. Service Features: 1. Eight Enunciation LED’s to indicate system status. 2. Two push buttons for technician. a) Cancel timers. b) Check defrost operation. |
| Suitable Brand | ActronAir |
| Suitable Applicance Class | Air Conditioner |
| Suits to | AFS-D8CPUR3-1, AFR-D8CPUR3-1 FOR AFS-D8CPUR3-1, |
| BTU Cooling Rating | 17000-17999 BTU |
| Model | AFS-D8CPUR3-1 |
| Colour | White |
| Air Flow Volume | 110-145 CCM |
| Energy Rating | Compliant |
| MPN | AFS-D8CPUR3-1,AFR-D8CPUR3-1 FOR AFS-D8CPUR3-1 |
| Mounting Location | AFS-D8CPUR3-1 |
| Number of Heat Settings | 1 |
| Brand | ACTRON |
| Heating System | Split System |
| Number of Cool Speeds | 1 |
| Power Phase | 1 Phase |
| Power Source | Corded Electric |
| Operating Sound Rating | 51-60 dB |
| Number of Fan Motors | 2 |
| Number of Compressors | 1 |
| Voltage | 230 |
| UPC | Does not apply |
| SKU No | EBY_293371482915 |
