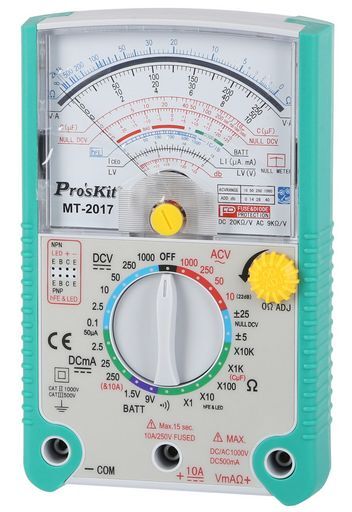

This is a ANALOGUE MULTIMETER of brand Universal.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title ANALOGUE MULTIMETER
Notes This multifunctional analogue multimeter is an accurate and safe handheld meter that comes in a robust protective holster. It offers accurate and reliable measurement of DC and AC voltage, DC current, resistance, decibels, diode, transistor hFE, LED, diode, continuity test and capacitance with very high sensitivity quality movement. Powered by batteries 2x AAA and 1x 9V (sold separately). 160x105x40mmDC V: Range (0-0.1-2.5-10-50-250 V-1000V), Accuracy (±3% FSD, ±4% FSD for 1000V) Null DCV: Range (±-5V, ±25V), Accuracy (±5% FSD) AC V: Range (0-10-50-250V-1000V), Accuracy (±4% FSD, ±5% FSD for 1000V) DC mA: Range (0-0.05-2.5-25-250 mA, 10A), Accuracy (±3% FSD, ±4% FSD for 10A) Ω: X 1: 0.2 ~ 2KΩ, Midscale at 20Ω; X 10: 2 ~ 20KΩ, Midscale at 200Ω; X 100: 20~200KΩ, Midscale at 2000Ω; X1K: 200~ 2MΩ, Midscale at 0KΩ; X10K: 2K~20MΩ, Midscale at 200KΩ, Accuracy (± 4% of ARC of Scale Length) Capacitance (uF): Range (C: 2,000uF Max) BATT Check: 0 ~ 1.5V: GOOD, - ? – BAD or 0 ~ 9V: GOOD, - ? – BAD Transistor Check: Range (hFE: 0-1000 via special hFE socket) LED, Diode: Range (via special hFE socket) Decibel: Range (-22 dB ~ + 62 dB (0dB=1mW at 600Ω)  Continuity Check: Range (Beeper sounding under 200 Ohm)
SKU NoWES_MT-2017_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN MT-2017
SKU WES_MT-2017_1
Brand Universal
