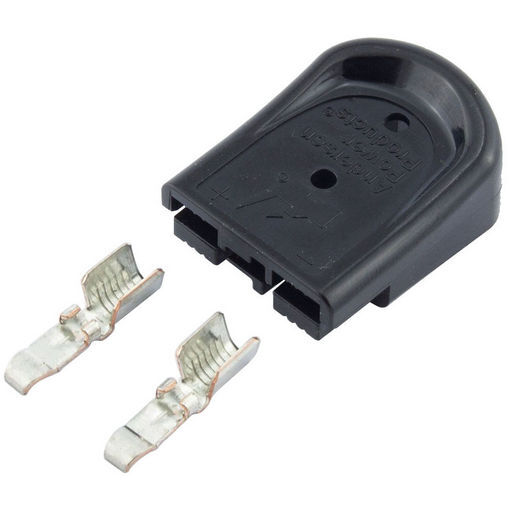

ANDERSON SBS MINI PLUG KIT 2 WAY 45A
ANDERSON SBS MINI PLUG KIT 2 WAY 45A
SKU code: WES_SBSMBLK45_1
This is a ANDERSON SBS MINI PLUG KIT 2 WAY 45A of brand Anderson Power Products.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | ANDERSON SBS MINI PLUG KIT 2 WAY 45A |
| Notes | The Anderson Power Products SBS Mini® 45A plug is perfect for drones, amateur radio, RC, solar and 4x4 applications where a reliable, rugged, affordable power connection is needed. This kit features a 45 Amp black housing and a pair of contacts.SBS®: The “Storage Battery Safety” connector provides a compact connection with a touch safe interface. SBS® Mini Connector series is our smallest DC power connector in the SB® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.75 to 4.0 mm²) wires allowing up to 52 amps of UL rated performance per position.SBS Mini series 45A plug kitTouch Safe Housing2x silver coated contactsGenderless design. Two connectors are joined by flipping one 180°, and they will mate to each other.Rated to 600V 45ASize: 8.5x22x28mmSold in singles |
| Description | Anderson SBS Mini Plug Kit 2 Way BLK 45A 10-14AWG Contacts |
| Amps | 45A |
| AWG | 10AWG |
| Colour | Black |
| Contact | Silver plated |
| Gender | Genderless |
| Housing Material | Polycarbonate |
| Length | 28mm |
| Manufacturer | Anderson Power Products |
| Positions | 2 |
| RoHS | Yes |
| Wire Size (mm²) | 5.3mm² |
| IP Rating | IP64 |
| Series | Anderson SBS Mini |
| Size | 8.5x22x28mm |
| Suits | SBS |
| Type | Plug |
| Voltage | 600V |
| SKU No | WES_SBSMBLK45_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | SBSMBLK45 |
| SKU | WES_SBSMBLK45_1 |
| Brand | Anderson Power Products |
