This is a replacement belt. It is suitable for replacing PIX appliances.

SALIN is a leading Australian appliance spare parts distributor for many types of applicances. We take pride in our ability to bring hard-to-find spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW.

TECHNICAL SHEET
TitleBelt for Bolens 1737459, Cub Cadet 754-3029 or 954-3029, EverRide 192111, John Deere M117608, MTD754-0245 or 954-0245, Murray 37X24 or 37X24MA or Scag
BrandPIX
Replacement ItemBelt
MPNPN119
Notes

Belt Replaces:
Bolens   1737459
Cub Cadet   754-3029 or 954-3029
EverRide   192111
John Deere   M117608
MTD   754-0245 or 954-0245
Murray  37X24 or 37X24MA
Scag   481749

Fits:

Bolens
1113 LT11 as the cutter deck belt

Cub Cadet
38", 44", 46" cut   12hp to 15hp models as the PTO belt

EverRide
48" cut   Hornet 20/48D  ZTR as the pump drive belt
52" cut   Hornet 20/52D (Diesel) ZTR as the pump drive belt

John Deere
38" cut   LX277, LX279 as the engine to PTO belt

MTD
42" cut   16hp LGT 1655 as the transmission belt

Murray
36" cut   16hp 5 speed model 36207 as the cutter belt

Scag
Selected Turf Tiger as the pump drive belt

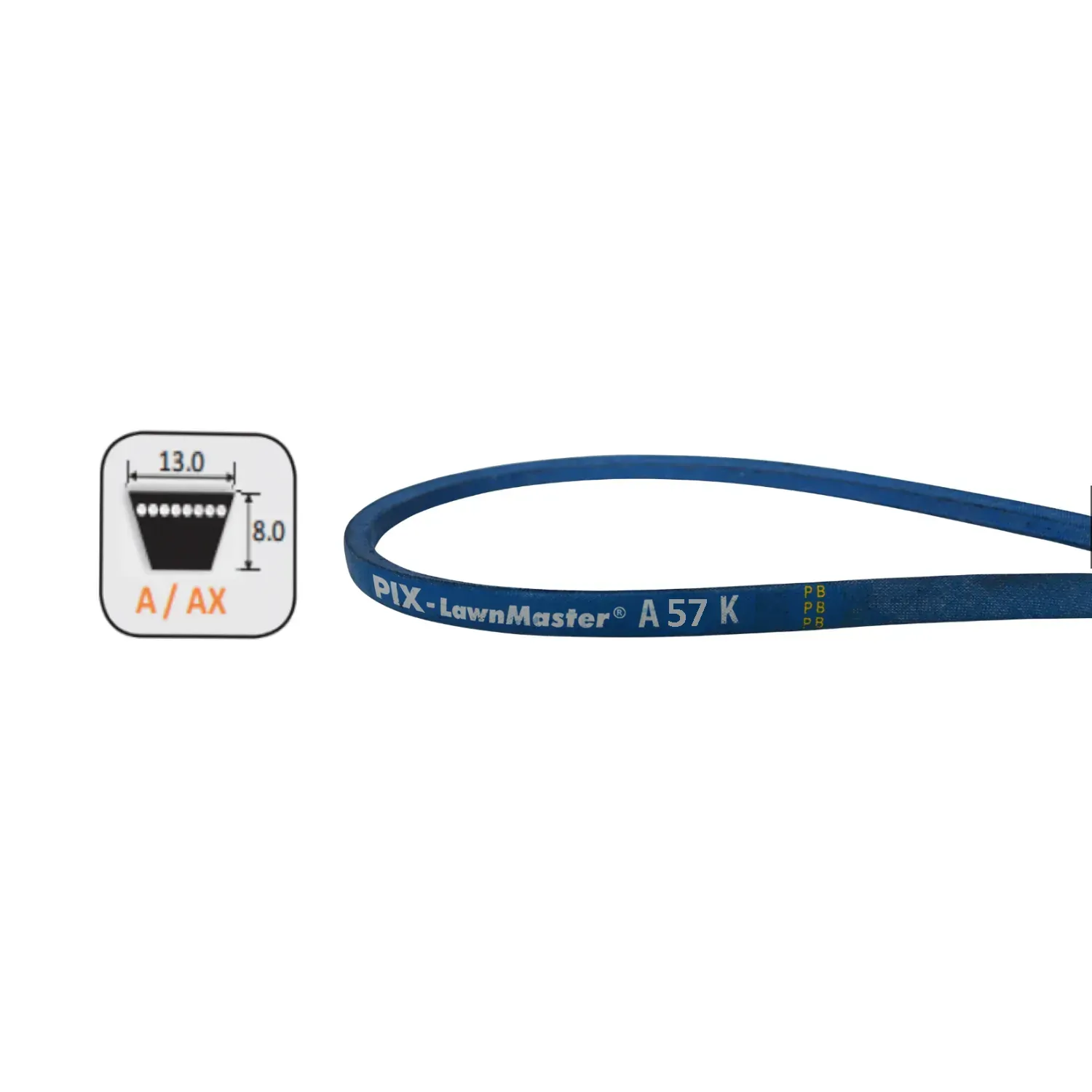

Belt Details:

Width: (inches) 1/2" (mm): 12.7mm
Inside circumference (inches) 57" (mm): 1447mm
Outside circumference (inches) 59" (mm): 1498mm
(Non-)
Made with KEVLAR™

Please check your manual for the correct belt number as there could be multiple applications.
Manufacturers have uploaded manuals online.

All parts need to be fitted by a licensed Technician



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU BES_0002691
Brand PIX
Shipping Weight 1.0000kg
