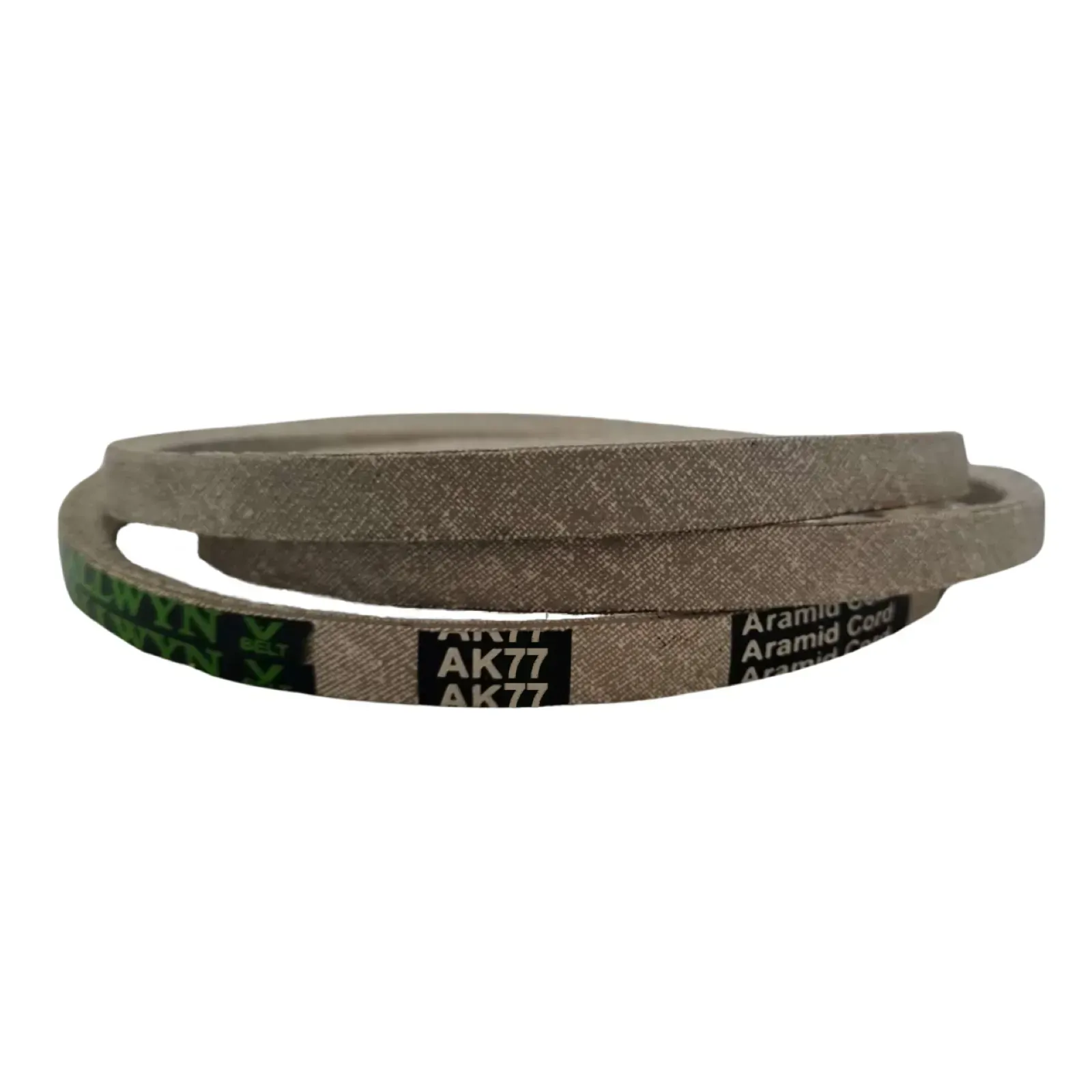

This is a replacement belt. It is suitable for replacing ALLWYN appliances.

SALIN is a leading Australian appliance spare parts distributor for many types of applicances. We take pride in our ability to bring hard-to-find spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW.

TECHNICAL SHEET
TitleBelt Replaces Bolens 1739080, Craftsman 754-04207 954-04207, Cub Cadet 754-0640 9540640 incl MTD 754-0349 954-0349 Rover 754-04207 and 954-04207
BrandAllwyn
Replacement ItemBelt
MPNPN127
Notes

Belt Replaces:

Bolens   1739080
Craftsman   754-04207 and 954-04207
Cub Cadet   754-0349, 954-0349, 754-0640, 9540640, 754-04207 and 954-04207
MTD   754-0349 and 954-0349
Rover   754-04207 and 954-04207

Fits:

Bolens
38" cut   LTX18 twin ride-on lawn mower 14112 models as the cutter deck belt

Craftsman
42" cut PYT9000 Professional Series 26hp model 28980 transmission drive belt
46" cut PYT9000 Professional Series 26hp model 28888 transmission drive belt
50" cut PYT9000 Professional Series 26hp model 28981 as the transmission drive belt

Cub Cadet
GT1554 model 14AK13CK710 as the transmission drive belt
38" cut   1515 13A-201F630 15hp 2002 and 1525 13A-221F100 15hp 2003 as the transmission belt
42" cut LT1018 13AL11CG710 18hp 2004, 1517 13A-231G630 17hp 2002 and 13A241G100 1527 17hp 2003 as the transmission belt

42" cut LTX1042 13AX91AG330 19hp 2009 models as the hydro transmission belt
46" cut   side discharge 600, 700, 800 series 1987-2000 as the transmission belt
46" cut LT1022 13AB11CH710 22hp 2004 and 1529 13A-261H100 19hp 2003 as the transmission belt
50" cut LTX1050 13AP91AP330 23hp 2009 models as the hydro transmission belt
54" cut SLTX1054 3AQ92AK330 25hp 2009 models as the hydro transmission belt

Massey Ferguson
50" cut   MF 50-23 SD as the transmission drive belt

MTD
42" cut   15HP, 17HP Hydrostatic drive models up to 2002 and fitted with 18" rear wheels only as the primary drive/transmission belt
46" cut   16HP LGT 165 only as the cutter belt
46" cut   18HP 5 speed as the cutter belt
46" cut   18HP Variable speed as the cutter belt
46" cut   Auto drive 1999 onwards only as the cutter belt
(No other 46" cut MTD mowers apply!)

Rover Rancher
42" cut 20/42 model 2042 13AP91KS333 2010 - 2012 as the transmission drive belt
42" cut 20/42 model 2242 13AP91WS333 2012 - 2014 as the transmission drive belt

Rover Raider
38" cut 1538 model 13AM91WF333 (2012-2014) as the transmission drive belt 42" cut 1742 model 13AN91WS333 (2012-2014) as the transmission drive belt
46" cut 1946 model 13AO91WT333 (2012-2014) as the transmission drive belt

Belt Details:

Width: (inches) 1/2" (mm): 12.7mm
Inside circumference (inches) 77" (mm): 1955mm
Outside circumference (inches) 79" (mm): 2006mm
(Non-)
Made with Kevlar™

Please check your manual for the correct belt number as there could be multiple applications.
Manufacturers have uploaded manuals online.
