This is a replacement belt. It is suitable for replacing PIX appliances.

SALIN is a leading Australian appliance spare parts distributor for many types of applicances. We take pride in our ability to bring hard-to-find spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW.

TECHNICAL SHEET
TitleBelt Replaces Honda 76181-771-L21, MTD 745-0472, 954-0472, Murray 314108, Scag 48207, Stihl-Viking 7004 872 0907 or 6121 931 4108 or Victa NR314108
BrandPIX
Replacement ItemBelt
MPNPN181
Notes

Belt Replaces:

Honda   76181-771-L21
MTD   745-0472, 954-0472
Murray   314108
Scag   48207
Stihl-Viking   7004 872 0907 or 6121 931 4108
Victa   NR314108

Fits:

Honda
1996   H2013 SE type ONLY as the cutter deck belt
2001   H2013HK1 SE type ONLY as the cutter deck belt

MTD
42" cut   Auto Drive step through frame models with electric PTO clutches 1999 onwards as the PTO to deck belt

Scag
48" and 60" cut   selected models as the blade drive belt

Stihl-Viking
43" cut   MT415H and MT415T as the cutter deck belt

Victa
43" cut   Noma 4315TX as the cutter deck belt

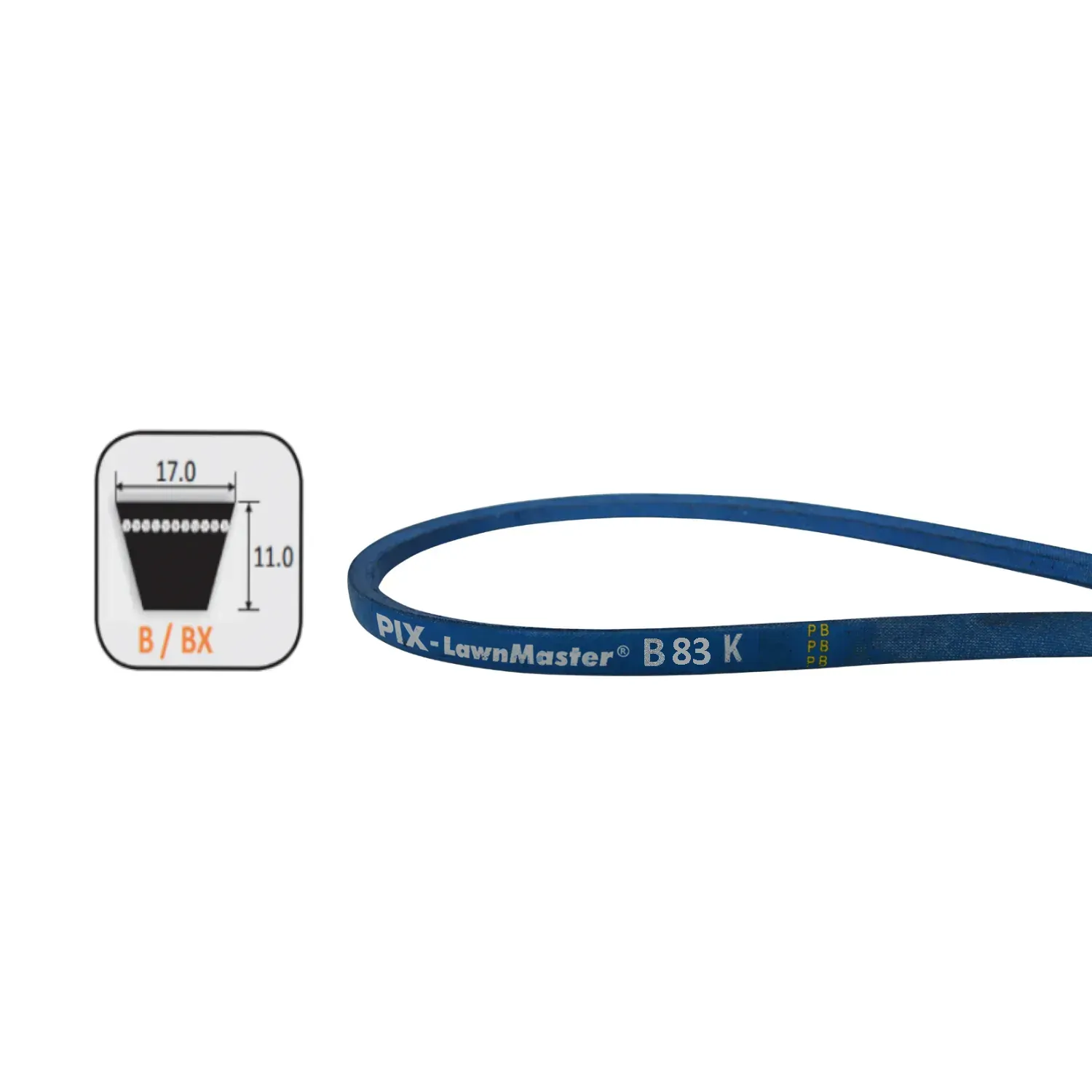

Belt Details:

Width: (inches) 5/8" (mm): 17mm
Inside circumference (inches) 83" (mm): 2108mm
Outside circumference (inches) 86" (mm): 2184mm
(non-)
Made with Kevlar™

Please check your manual for the correct belt number as there could be multiple applications.
Manufacturers have uploaded manuals online.
All parts need to be fitted by a licensed Technician



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU BES_0001219
Brand PIX
Shipping Weight 1.0000kg
