This is a BOSCH SPEAKER SYSTEMS - LB20 of brand Bosch.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET

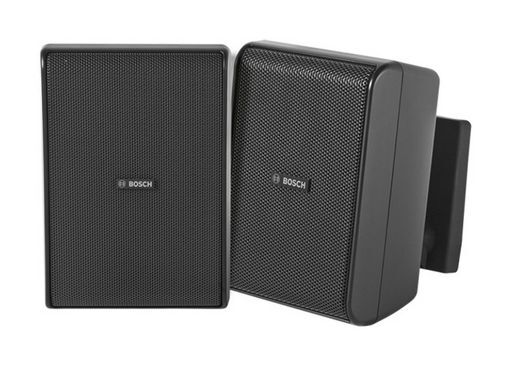

Title BOSCH SPEAKER SYSTEMS - LB20
Notes PREMIUM COMMERCIAL LOUDSPEAKERS The LB20 series is the latest member of the Bosch family of commercial loudspeakers for indoor and outdoor applications. Acoustically matched and aesthetically compatible with other Bosch models, the LB20 series incorporates innovative features that efficiently and effectively address the real-world needs of both the installer and the end-user-easy installation and exceptional Bosch audio performance in an incredibly versatile format. The LB20 series was designed from the ground up to be the new go-to choice for distributed sound systems – compact and cost-effective with no compromises.Models & ApplicationsThe lineup includes 4-inch, 5.25-inch and 8-inch 2-way models with a matching dual-10-inch subwoofer, making it easy to select a suitable model for a specific space, indoors or outdoors. Each member of the series offers true weather-resistant construction, confirmed by extensive and rigorous testing above and beyond industry norms. Combining low-profile looks with robust, set-it and forget-it reliability, they are ideal for bars, restaurants, patio areas, retail spaces, hotel hallways and lobbies, pool areas, airport lounges and concourses, fitness clubs, houses of worship, performing arts centers and similar venues.Key Features: » Innovative wall-mount system makes installation quick and easy. » All models are IP54 certified for weather resistance; IP65-certified weatherproof versions are available for the 5.25-inch models and the dual-10-inch subwoofers. » Low-Z (8 ohms) and transformer (70/100V) models available for maximum flexibility. » Aesthetically pleasing: all wiring to the loudspeaker can be hidden; all models are paintable and feature removable grilles. Rotatable logos help maintain correct appearance for horizontal positioning.Designed with the contractor in mind, with unique time-saving and performance-enhancing features to simplify installation.Superior Bosch quality with controlled sound coverage for keeping background music focused and paging intelligible.Handles higher SPLs for use in bars, clubs and restaurants.
Description2 Way Full Range Cabinet 5.25” Woofer 0.75' Tweeter - 90 x 90 - 100V TX - Taps @ 30, 15 & 7.5W + 8 Ohm - IP54 – Smart Mount Included - Black
Type2-Way
Size5.25'
Price TypePair
Power30Wrms
Freq.60Hz - 20kHz
Height255mm
Width180mm
QTY2
Weight7.9Kg
Impedance70V/100V
Taps30W/15W
MountWall Bracket Included
Depth154mm
Sens.90dB
Woofer5.25'
SPL90dB
dBi109dB
ManufacturerBosch
Dimensions255x180x154mm
Prms30W
IPIP-54
Tweeter0.75'
MaterialsABS
Impedance (Ohm)70V/100V
Power (RMS)30Wrms
Inch5.25
Brand.Bosch
OEMF.01U.331.734
SKU NoWES_LB20-PC30-5D_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN LB20-PC30-5D
SKU WES_LB20-PC30-5D_1
Brand Bosch
