Brand New Ulka Ex5 Pump & Vbm Adjustable Bypass Kit Suit Breville Bes900 Bes920 Bes980 For Coffee Machines
Brand: BREVILLE | Type: Water Pump Bypass
SKU: CFS_173812595398
Most of our items are in stock and will be dispatched within 3 working days.
In rare cases where an item needs to be sourced from our supplier, dispatch may take up to 7 working days.
This is a replacement water pump bypass. It is suitable for replacing BREVILLE Coffee Machines.
SALIN is a leading Australian appliance spare parts distributor for many types of applicances. We take pride in our ability to bring hard-to-find spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW.
| TECHNICAL SHEET | |
|---|---|
| Title | Brand New Ulka Ex5 Pump & Vbm Adjustable Bypass Kit Suit Breville Bes900 Bes920 Bes980 For Coffee Machines |
| Brand | Breville |
| Replacement Item | Water Pump bypass |
| Suitable For | Coffee Machines |
| Compatible Brands | Vibiemme |
| Material | Brass |
| MPN | ASSBYPASS, ASSBYPASSNEW, EX5, 1.01.320.07/PAEX5, 1122735, 617160/22, 200, 276, 1349276 |

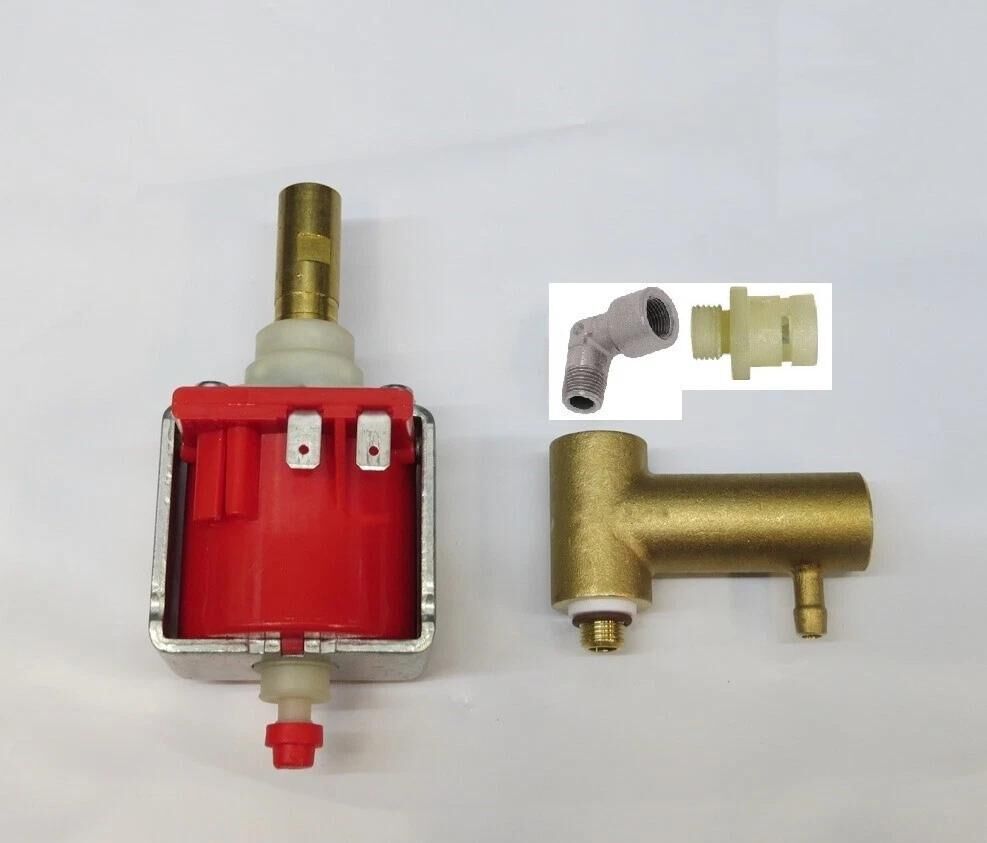

| Notes | VBM Adjustable BRASS BYPASS with Elbow and Adaptor AND ULKA EX5 220/230 volt Coffee Machine Pump Assembly required FITS Breville BES900 series with Inlet 1/8" BSP Male outlet size to suit Breville Pipe with oring as per pic 1 READ IF UNSURE of your ability to do this job DONT Remove old pump and bypass. (Top pump rubber is held in by 2 screws. (it needs to be fitted to the new pump before the brass bypass is fitted.) Fit the bypass to the pump and install into the machine, (the brass shaft of the pump can be rotated for alignment. (It has a slot in the shaft for a 13mm open ended spanner and should turn easily.) **White teflon tape can be used on threads Work out the position of the pipe and top fitting. Clean and Lubricate the Breville oring refit the Breville clip and test for leaks Fitting a hose clamp to the bypass return line is recommended (not Included) ASSEMBLY REQUIRED THIS KIT ALLOWS YOU TO REMOVE THE ADJUSTABLE BYPASS, AND CONVERT MACHINE BACK ORIGINAL IF REQUIRED Picture 2 shows the bypass and fittings Our Pumps are Brand New and are tested by us before being This may result in water being inside them and some staining on the end of the brass shaft. replacement seals available in other listings silicone seal 460208 rubber seal 460036 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
