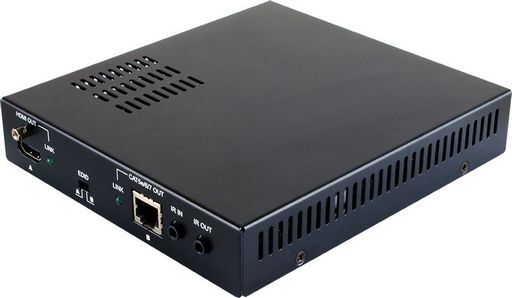

.CAT5e/6/7 REPEATER WITH HDMI BYPASS OUTPUT (100m)
.CAT5e/6/7 REPEATER WITH HDMI BYPASS OUTPUT (100m)
SKU code: WES_CHDBX-1H1CE_1
This is a .CAT5e/6/7 REPEATER WITH HDMI BYPASS OUTPUT (100m) of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | .CAT5e/6/7 REPEATER WITH HDMI BYPASS OUTPUT (100m) |
| Notes | The CAT5e/6/7 over HDMI and CAT5e/6/7 Splitter can convert a single CAT5e/6/7 input, 2-way IR control and LAN serving to a single CAT5e/6/7 output and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multichannel digital audio formats (such as LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD). The HDMI output can be connected to an HDMI display or cascaded to another splitter. The CAT5e/6/7 output can be connected to a CAT5e/6/7 to HDMI Receiver to extend the operating distance up to 100 metres. Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles.HDMI with 3D & 4K2K supported, HDCP and DVI compliantSimultaneous HDMI and CAT5e/6/7 outputsSupports data rate from 250Mbps up to 3GbpsSupports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4K2K (3840x2160@24/25/30Hz, 4096x2160@24Hz and 4K2K@60 YUV_420)Supports LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio transmission (32-192kHz sample rate)Supports distances up to 100 metres through CAT5e/6/7 cablesSupports Ethernet network rate up to 100MbpsCan select EDIDSupports USB service portSupports control of devices via 2-way IRThe 3D signal display follow by display TV’s EDID |
| Description | CAT5e/6/7 Repeater with HDMI Bypass Output (100M) |
| Input | 1x CAT5e/6/7 |
| Output | ETHERNET |
| IR | Yes |
| Cable Length | 100M (@1080p) |
| 3D | Yes |
| HDCP | Yes |
| PoE | Yes |
| Ethernet | Yes |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | Yes |
| Manufacturer | Cypress |
| Max Res. | 4Kx2K |
| SKU No | WES_CHDBX-1H1CE_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CHDBX-1H1CE |
| SKU | WES_CHDBX-1H1CE_1 |
| Brand | Cypress |
