CATERING RESTAURANT DOMESTIC GAS METER 750 SERIES
Brand: Powas
SKU code: EBY_292350018845
This is a replacement part for Powas. It is suitable for Powas - Commercial Kitchen Equipment.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | CATERING RESTAURANT DOMESTIC GAS METER 750 SERIES |

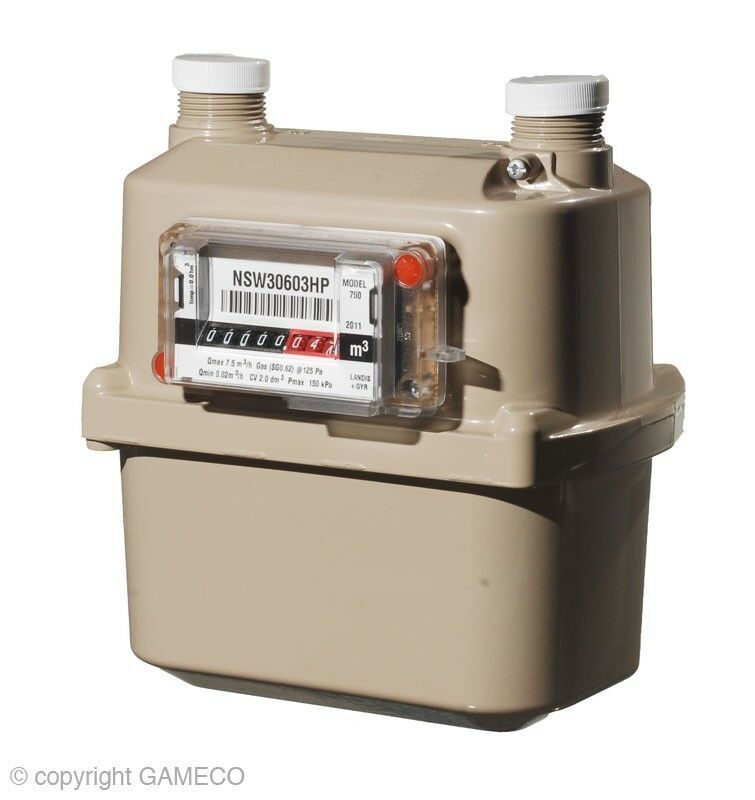

| Notes | DOMESTIC GAS METER 750 SERIES PART NO : 750512 DOMESTIC GAS METER 750 SERIES. This is Gas Meter Listing Only If the Bracket and Regulator is required .....must be ordered separately Bracket 503700 $74.95 Regulator 312612323763 $109.95 will not be need if for a granny flat General Details Housed in a compact aluminium case, the Model 750 is a slow revving high capacity gas meter. Its 2 litre per cycle diaphragm operates at a rate of 40% slower than its 1.2 litre rivals. This design minimises the speed of internal components and coupled with high quality materials wear rates are reduced ensuring long term accuracy retention. The Model 750 has a capacity of 7.5m³/h of Natural Gas (SG0.62) or 6m³/h of Air at 125Pa pressure drop, a standard proven in Australia and throughout the world to ensure durability and reliable accuracy for periods of beyond 20 years. Suitable for granny flat sub meters . Accuracy The outstanding design features of the Model 750 gas meter such as its tangent control, large cyclic capacity and magnetic drive index provide unparalleled accuracy from 10 litres/h to 7.5m³/h. Our modern calibration and test facilities are accredited to ISO/IEC 17025. Pressure Absorption The Model 750 meter has a low pressure absorption due to the tangent assembly, sliding low friction valves, and large cyclic volume (2 dm³/cycle), which ensures extended field life and long term accuracy retention. Pressure absorption across the meter reflects how hard the meter is working and is directly proportional to the component wear rate and subsequent meter life. The pressure absorption of the Model 750 is 125 Pascals (Pa) at a flow rate of 6m³/h of Air (7.5 m³/h of Natural Gas). Accuracy Retention The initial accuracy of a meter is easy to achieve by using calibration to pass initial testing. However, sustained accuracy over time comes down to the quality, design and construction of the meter. The Model 750 has been designed for long-term stability and extended field life. Product Enhancements Every Model 750 gas meter is supplied pulse ready so that the meter can be retrofitted with a pulse output module for advanced metering applications without the need to replace the meter index. The Model 750 is also available with a top reading index allowing ease of reading when the meter is located in a low height. The model 750 is also available with Viton o-rings for aggressive gas applications. Endurance Testing Endurance testing to the most stringent world requirements has been conducted on the Model 750 that show long term accuracy retention. The Model 750 meter exceeds the endurance testing requirements of the European Standard EN1359:1999, American National Standard ANSI B109.1, Australian Standard AS4647:2005, and OIML Recommendation 31. GAS METER BRACKETS TO SUIT 750512 GASMETER Complete Gas Meter Setup: Regulator , Brackets and Gasmeter |
| Suitable Brand | Powas |
| Suits to | 750512 |
| MPN | 750512 |
| Brand | POWAS |
| UPC | Does not apply |
| SKU No | EBY_292350018845 |
