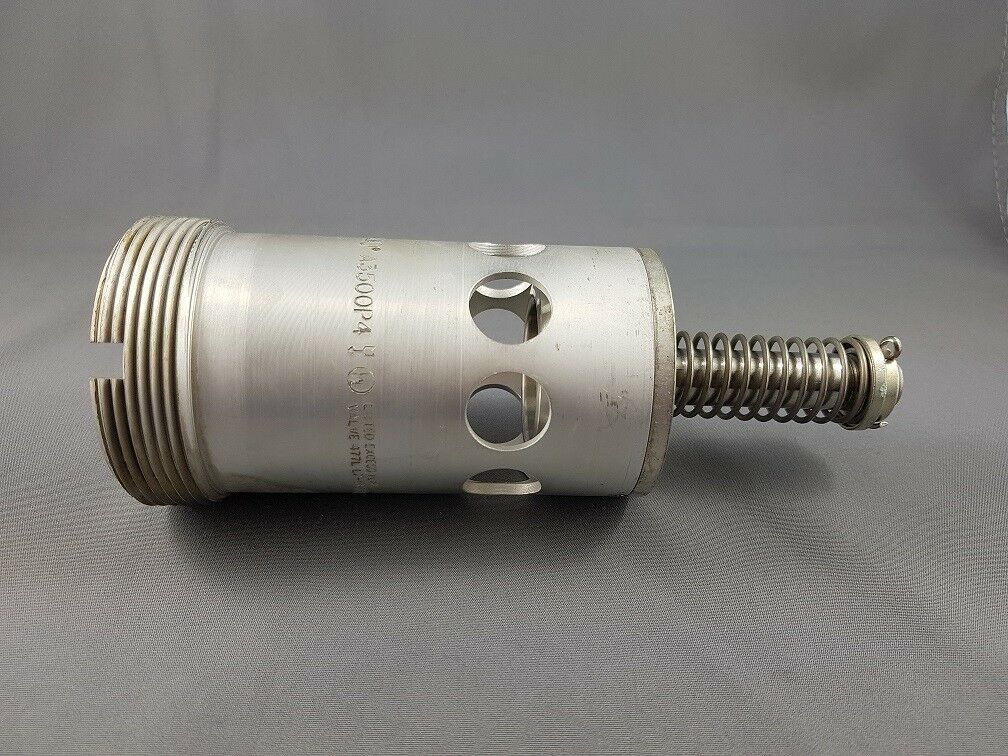

CATERING RESTAURANT EXCESS FLOW VALVE 2″ MNPT
Brand: Powas
SKU code: EBY_292349839333
This is a replacement part for Powas. It is suitable for Powas - Commercial Kitchen Equipment.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | CATERING RESTAURANT EXCESS FLOW VALVE 2″ MNPT |
| Notes | EXCESS FLOW VALVE 2″ MNPT PART NO : A3500P4 EXCESS FLOW VALVE 2″ MNPT Application Designed for mounting in flanged tank connections with internal threads in the bottom of a container. They may be used in filling, withdrawal or vapor equalizing application. They provide high flow capacity with low pressure drop to minimize pump inlet line cavitation. If a riser pipe to the vapor space is used with these excess flow valves, the minimum inside diameter of the riser pipe must be at least two times the valve thread size in order not to restrict flow to the side inlet ports. Flange mounted excess flow valves are readily accessible for servicing and completely enclosed and protected in event of fire. Because there is no direct connection between external piping and the valve, stresses imposed on piping will not affect the excess flow valve. Features Precision machined. Generous flow channels provide low pressure drop minimizing cavitation in pump suction lines. Cotter pin prevents loss of spring retainer due to vibration in service. Stainless steel spring provides consistent closing flow and long service life. Materials Body………………………………………………………. Cadmium Plated Steel Seat Disc………………………………………………… Cadmium Plated Steel Stem…………………………………………………………………. Stainless Steel Spring……………………………………………………………….. Stainless Steel Guide……………………………………………………… Cadmium Plated Steel |
| Suitable Brand | Powas |
| Suits to | A3500P4 |
| Brand | POWAS |
| MPN | A3500P4 |
| UPC | Does not apply |
| SKU No | EBY_292349839333 |
