This is a CEL-FI GO4 3G / 4G / 5G BUILDING REPEATER of brand Cel-Fi.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title CEL-FI GO4 3G / 4G / 5G BUILDING REPEATER
Notes SWITCHABLE TO SUIT TELSTRA, OPTUS OR VODAFONE NETWORKS Cel-Fi GO4 (G41) represents the latest in 4G cellular repeater technology. Building on the success of the GO2 model, GO4 has a higher output power (+20 dBm), providing the largest coverage area of all GO models. GO4 operates on more frequency bands and can be easily switched between Telstra, Optus and Vodafone-TPG (one carrier at a time) should you change service provider. Cel-Fi GO4 is ideal for inbuilding cellular coverage applications for Telstra, Optus and Vodafone. The higher output power means more service antennas can be run from the one repeater, and by popular request, the unit now has an RJ45 Ethernet network interface for remote management. Expanding on GO2’s dual-band functionality, GO4 supports carrier aggregation with 40 MHz of relay bandwidth.700L / 850 / 900 / 1800 / 2100 / 2600 MHz (Note:700 band is not supported on Vodafone)3G, 4G, VoLTE, NB-IoTCarrier Switching using WAVE App between Telstra, Optus or Vodafone – one carrier at a timeUp to 3000 m2 coverage areaTwo band simultaneous relayTotal System Relay Bandwidth – Up to 40 MHz Note: GO4 has the future capability to boost 5G as the feature is there but not enabled as it has not been approved by the carriers. When it does become approved, users will be able to run an update through the app which will enable the 5G functionality on the GO4 device.

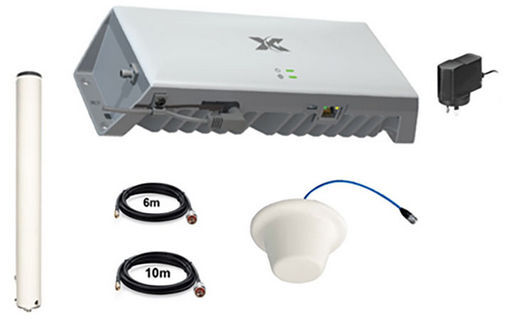

DescriptionGo4 Mobile Telstra / Optus / Vodafone - With External omni and Internal ceiling dome antennas
Band3G/4G/5G
ColourWhite
Description ExtendedCel-Fi GO4 (G41) represents the latest in 4G cellular repeater technology. Building on the success of the GO2 model, GO4 has a higher output power (+20 dBm), providing the largest coverage area of all GO models. GO4 operates on more frequency bands and can be easily switched between Telstra, Optus and Vodafone-TPG (one carrier at a time) should you change service provider. Cel-Fi GO4 is ideal for inbuilding cellular coverage applications for Telstra, Optus and Vodafone. The higher output power means more service antennas can be run from the one repeater, and by popular request, the unit now has an RJ45 Ethernet network interface for remote management. Expanding on GO2’s dual-band functionality, GO4 supports carrier aggregation with 40 MHz of relay bandwidth.
Device TypeBuilding Pack
ExternalWEB-024
Feature700L/850/900/1800/2100/2600 MHz (700 band not supported on Vodafone) 3G, 4G, VoLTE, NB-IoT (GO4 has 5G capabilities, but currently not enabled or approved) Carrier Switching using WAVE App between Telstra, Optus or Vodafone – one carrier at a time Up to 3000 m2 coverage area Two band simultaneous relay Total System Relay Bandwidth – Up to 40 MHz Remote Monitoring, Control and Alert Capabilities via WAVE Portal (for approved installers) Ethernet Port for connection to internet source for live monitoring
Frequency700-2600MHz
Gain6dBi
InOmni 6dBi
InternalANT-BH-OM-C
Lead6M + 10M LMR240
ManufacturerCel-Fi
NetworkTelstra, Optus or Vodafone
OEMGO4 Omni / Dome building pack
OutDome Ceiling
PlugN
Power12Vdc
TypeBuilding Pack
SKU NoWES_RPR-CF-00731_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN RPR-CF-00731
SKU WES_RPR-CF-00731_1
Brand Cel-Fi
