This is a replacement central vacuum cleaner motor. It is suitable for replacing spare parts for MIELE Vacuum Cleaners.

SALIN is a leading Australian appliance spare parts distributor specializing in MIELE applicances. We take pride in our ability to bring hard-to-find MIELE spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our MIELE range is genuine.

TECHNICAL SHEET
Part No39 6011-117123-00
TitleCentral Vacuum Cleaner Motor for Miele | PN: 39 6011-117123-00
BrandMiele
Replacement ItemCentral Vacuum Cleaner Motor
Suitable ForVacuum Cleaners
Compatible Models✔ 187EA BEAM
✔ 187ED BEAM
✔ 187EW BEAM
✔ 187EG BEAM
✔ 187EF BEAM
✔ 187EWA BEAM
✔ 2087EA BEAM
✔ 2087EB BEAM
✔ 2087EC BEAM
✔ 199 BEAM
✔ 2100 BEAM
✔ 2100EA BEAM
✔ 2100EB BEAM
✔ 2500 BEAM
Notes

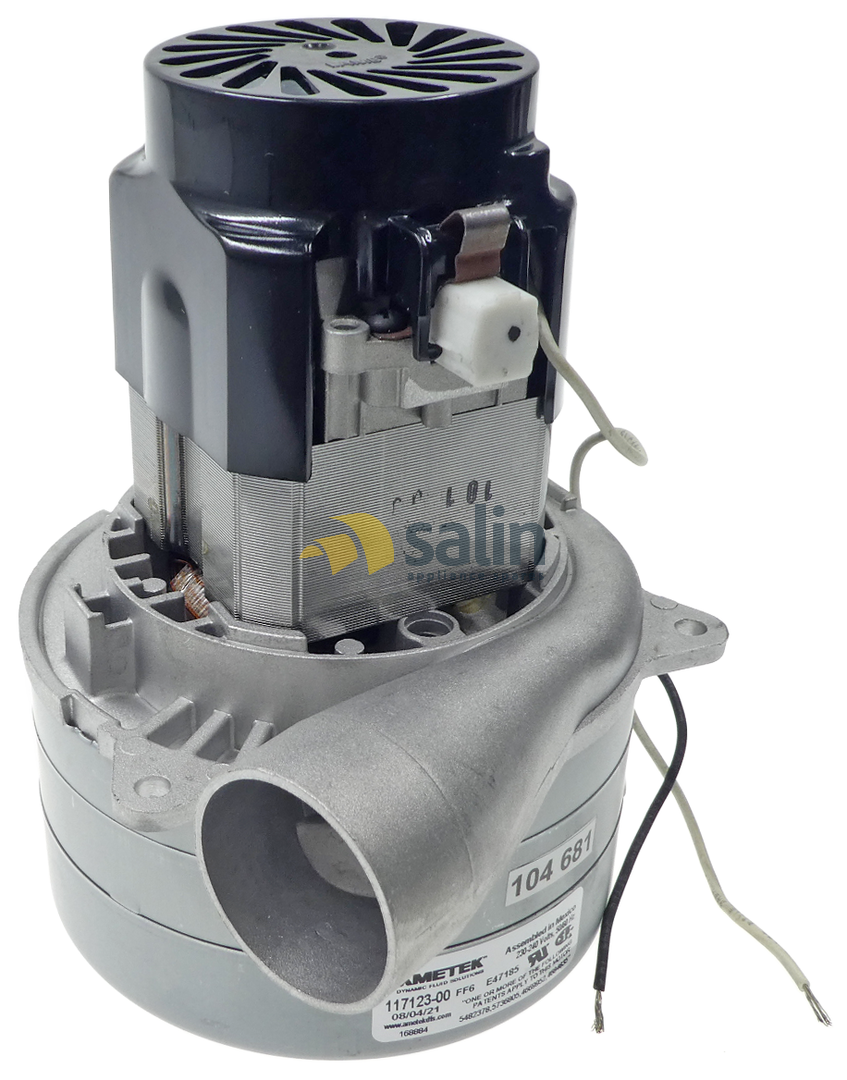

Central vacuum cleaner motor Ametek Lamb Electric 117123-00 (replaces earlier models 119549-00, 116859-00). Also replaces original beam motor 140304. Suitable for many Beam central vacuum cleaners: 187EA, 187ED, 187EW, 187EG, 187EF, 187EWA, 2087EA, 2087EB, 2087EC, 199, 2100, 2100EA, 2100EB, 2500. Does not include gaskets or flat connectors.

  • 1500W 220-240V ac 50/60Hz
  • 5,7" 3-stage Tangential Bypass
  • Height of the turbine part to the mounting lug 80 mm
  • Total height 205 mm
  • Base diameter 145 mm
  • The diameter of the exhaust pipe is 48 mm on the outside, 43 mm on the inside
  • A screw-fixed place for the grounding wire next to the carbon brush
  • Compatible carbon brush Miele / Allaway vacuum cleaner motor carbons (30150207)
SKU NumberHPL_00000249_0000



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.
