This is a replacement belt. It is suitable for replacing JOHN DEERE appliances.

SALIN is a leading Australian appliance spare parts distributor for many types of applicances. We take pride in our ability to bring hard-to-find spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW.

TECHNICAL SHEET

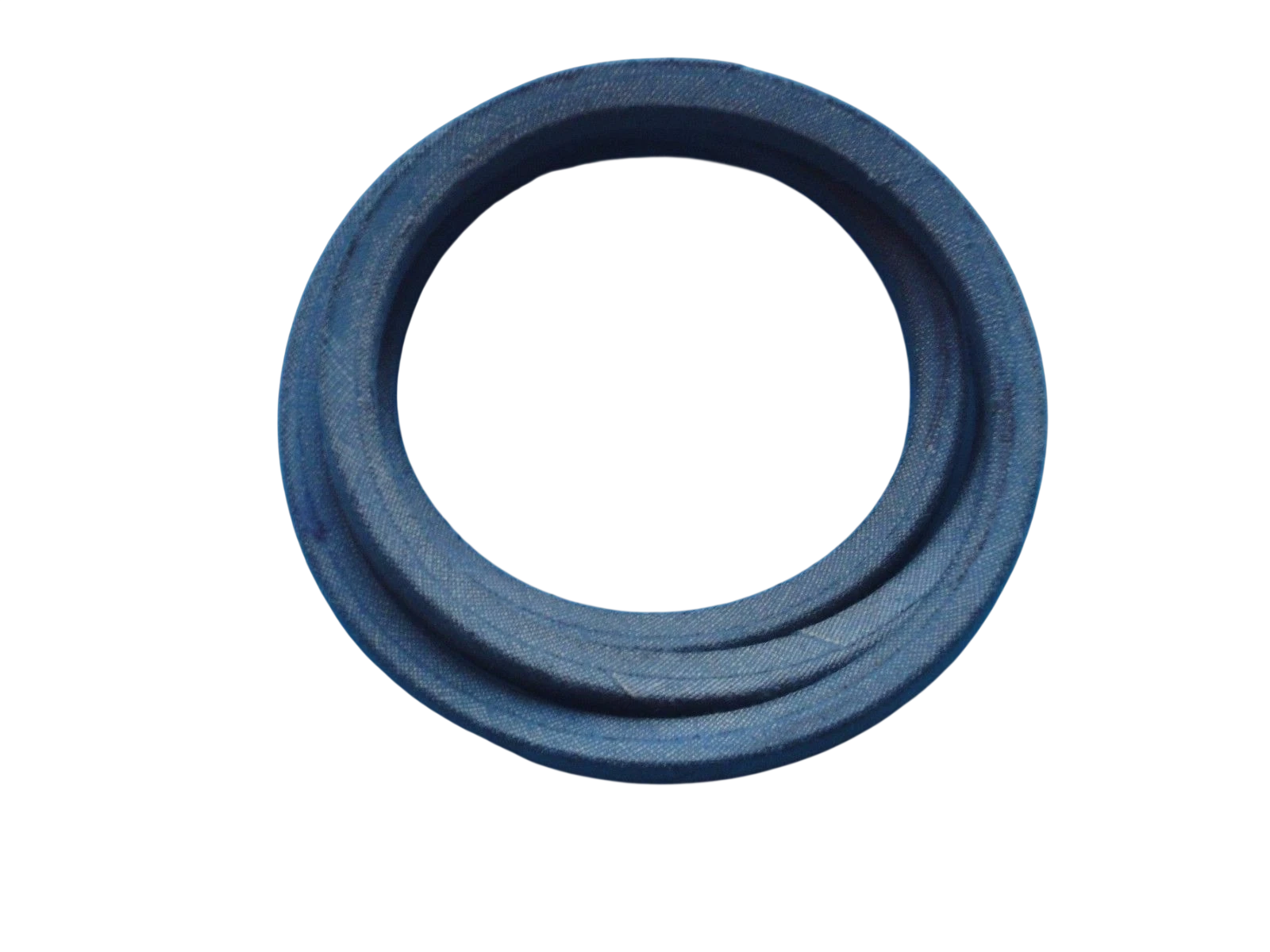

TitleCOMPATABLE JOHN DEERE M147044 V-BELT MADE WITH ARAMID FIBRES LX,X & Z SERIES,
BrandJohn Deere
Replacement ItemBelt
Belt Top Width13mm
Belt Section4L = 13x7mm
Belt Outside Length2286mm = 90 Inches
Belt Type4L V-Belt Kevlar
MPNM147044
Also Known AsRG4L900, XDV48/900
EANDoes not apply
Compatible BrandsPIX
Notes
Compatable High Performance Agri/Garden Mower V-Belt
Made with  ARAMID FIBRES
Compatible with the following models:

LX Series
- LX277 with All Wheel Steer ( Serial No. 060001 - )
- LX279 with All Wheel Steer ( Serial No. 060001 - )
- LX280 - LX289

X300 Select Series

- X350 with 48" Accel Deep Deck

- X380 with 48" or 54" Accel Deep Decks
- X384 with 48" Accel Deep Deck
- X390 with 48" or 54" Accel Deep Decks
-X394 with 48" Accel Deep Deck

X500 Select Series
- X570 with 48" or 54" Accel Deep Decks)
- X580 with 54" Accel Deep Deck
- X584 with 48" or 54" Accel Deep Decks
- X590 with 48" or 54" Accel Deep Decks

X700 Signature Series
- X710 with 48" or 54" Accel Deep Decks
- X730 with 48" or 54" Accel Deep Decks
- X734 with 48" or 54" Accel Deep Decks
- X738 with 48" or 54" Accel Deep Decks
- X739 with 48" or 54" Accel Deep Decks
- X750 with 48" or 54" Accel Deep Decks
- X754 with 48" or 54" Accel Deep Decks
- X758 with 48" or 54" Accel Deep Decks

Z400 EZtrak™ Series
- Z425 with 48" High Capacity Deck

Z500 Residential ZTrak™ Series
- Z525E with 48" or 54" Accel Deep Decks
- Z535M with 48" or 54" Accel Deep Decks
- Z535R with 54" High Capacity Deck
- Z540M with 48" or 54" Accel Deep Deck
- Z540R with 48" or 54" High Capacity Decks

Z600 EZtrak™ Series
- Z625 with 48" Accel Deep Deck
- Z645 with 48" or 54" Accel Deep Decks
- Z655 with 48" or 54" Accel Deep Decks
