.CV/SV/YUV/PC TO YUV/PC PROFESSIONAL SCALER PROFESSIONAL UXGA
VIDEO TO UXGA 1600X1200PX SCALER
SKU code: WES_CSC-210_1

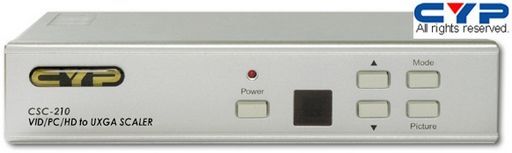

This is a .CV/SV/YUV/PC TO YUV/PC PROFESSIONAL SCALER PROFESSIONAL UXGA of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | .CV/SV/YUV/PC TO YUV/PC PROFESSIONAL SCALER PROFESSIONAL UXGA |
| Notes | VIDEO TO UXGA 1600X1200PX SCALER CSC-210 is designed to convert Composite, S-Video and YCbCr/YPbPr or PC signals to a variety of computer resolutions. It handles video input from TV systems NTSC, PAL TV standards. Cypress CSC-210 has many great features to enhance performance and is ideal for use in professional large screen presentation using VGA type HD15 connections.Professional scaler/de-interlacer for CV, SV, YCbCr/YPbPr and PC inputs. All inputs can be scaled up to output resolution as below PC output: 640x480, 800x600(SVGA), 1024x768(XGA), 1280x1024(SXGA), 848x480(WVGA), 1280x768(WXGA), 1360x768, 1600x1200(UXGA). Automatically accommodates input video systems of NTSC 3.58 and PAL. High performance adaptive 3D Comb filter Y/C separator. Per-pixel motion compensated de-interlacing algorithms to produce artifact-free progressive scan video signal. Built in Adaptive film mode 3:2 pull-down provides clear and crisp de-interlacing of video originating from 24 fps film, such as DVD movies. Frame rate conversion 50Hz / 60Hz. Vertical temporal filter (VT) removes jaggy de-interlacing artifacts. OSD menu with control on Colour, Detail, Brightness, Contrast and Hue (NTSC). Built-in DCTI/DLTI circuit for colour/luminance transient improvement. Last memory for all adjustments. RS-232 interface allows remote control from PC. |
| Description | Video to UXGA Scaler |
| Input | CV/SV/YUV |
| Output | UXGA |
| Scaler | VT DCT1 DLT1 |
| Page | 63 |
| Manufacturer | Cypress |
| SKU No | WES_CSC-210_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CSC-210 |
| SKU | WES_CSC-210_1 |
| Brand | Cypress |
