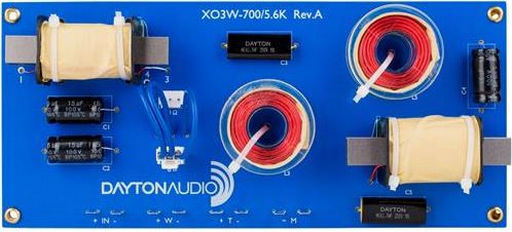

DAYTON AUDIO 3 WAY SPEAKER CROSSOVER
3-WAY 12dB 4Ω/8Ω 300Wrms
SKU code: WES_XO3W-7005.6K_1
This is a DAYTON AUDIO 3 WAY SPEAKER CROSSOVER of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | DAYTON AUDIO 3 WAY SPEAKER CROSSOVER |
| Notes | 3-WAY 12dB 4Ω/8Ω 300Wrms The 3-way, 2nd-order (12 dB/octave) crossover from Dayton Audio was designed with a 3 octave spread between crossover points. Metallised polyester film capacitors are used in the critical midrange and tweeter signal paths. 18 gauge tweeter and midrange inductors, and 20 gauge woofer inductors are used to keep DC resistance to a minimum. A unique design feature of the low-pass section allows for the use of 4 or 8 ohm subwoofers, perfect for building a multi woofer system. The midrange and high-pass sections are rated for an 8 ohm load. All components are glued or fastened down to eliminate buzzing and vibrations. The high quality blue PC board uses a back plate for added rigidity and eyelet holes for easy mounting. 300W power handling. Size: 244x110x40mm. Terminals are 5.2mm.Universal design for popular 3 octave spread between crossover points. 4.8mm terminals. 300Wrms 8Ω input with jumper leads to change the woofer output to 4Ω or 8Ω.Designed with a 3 octave spread between crossover pointsMetallized polyester film capacitors are used in the critical midrange and tweeter signal pathsLow-pass section allows for the use of 4 or 8 ohm woofers 244x110x40mm Sold as singles. Two required for stereo. |
| Description | Crossover 3 Way 12dB 700/5.6KHz |
| Size | 244x110x40mm |
| Z | 4/8Ω |
| Pin | 300Wrms |
| Slope | 12dB |
| X1 | 700Hz |
| X2 | 5600Hz |
| Manufacturer | Dayton Audio |
| QTY | 1 |
| Woofer | 4Ω / 8Ω |
| Price Type | each |
| SKU No | WES_XO3W-700/5.6K_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | XO3W-700/5.6K |
| SKU | WES_XO3W-7005.6K_1 |
| Brand | Dayton Audio |
