This is a DAYTON AUDIO TEST SYSTEM DATS-V3 of brand Dayton Audio.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title DAYTON AUDIO TEST SYSTEM DATS-V3

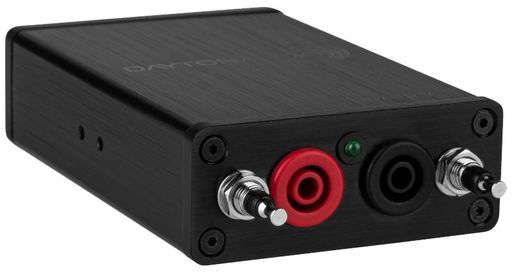

Notes Dayton Audio has taken the most complete and easy-to-use audio test system and improved it in almost every way when creating the DATS V3 Computer Based Audio Component Test System. With improvements to the accuracy, capability, and reliability of the DATS V2, the DATS V3 sets a new standard for quick and accurate audio component measurements. From the outside, the DATS V3 has a completely updated look and feel. The extruded aluminium housing makes DATS V3 durable enough to throw into a toolbox without worrying about damage. In addition, optional mounting brackets give you the option to mount the DATS V3 under a desk or test bench to save space. No more searching for a calibration resistor, it is now integrated into the case, just clip the test leads onto the pins on the front of the housing and run the calibration. Also, the test leads have been upgraded to removable insulated banana plug test leads, giving you the ability to use your favorite test leads and easily replace damaged test leads (test leads are included). Finally, we have added a USB-B jack rather than an integrated USB cable (USB A to B cable included). This allows the cable to be quickly swapped if there is any damage, or if a different length is preferred. The improvements continue on to the inside of the DATS V3. The internals have been completely redesigned and improved to deliver better accuracy and more power. With increased output power, the DATS V3 allows you to take measurements at a higher level to minimize the possibility that noise or vibration affects results. Dayton Audio has also upgraded many of the internal components with tighter tolerances to minimize the margin of error that is caused by a component's value variance. Even the calibration resistor has been upgraded to 0.1% tolerance. DATS V3 software is the true power of DATS. The included software not only measures impedance and parameters of speaker drivers with incredible accuracy, but the addition of the DATS Linearity Test gives you the ability to observe changes in parameters with differing drive levels. The Linearity Test automatically performs multiple sweeps of the driver at increasing (or decreasing) levels while saving each test result to memory making it easy to recall and compare the results. As always, the DATS V3 still has the capability to measure the true value of inductors, capacitors, and resistors, and it also works as a signal generator and scope to let you monitor small electrical signals (line-level only). Even more updates are planned to further set DATS V3 apart from the competition.Rugged aluminium housing with detachable test leads and built-in precision calibration resistorTighter tolerances on internal components for more precise measurementsLinearity test allows you to easily observe shifting parameters with different drive levelsIncreased output capability for greater separation from the noise floor for more accurate measurementsOptional under desk mounting brackets to save desk spaceUltra-linear impedance response measurement for loudspeaker drivers and complete systemsAccurate measurement of loudspeaker electromechanical parameters (Fs, Qts, Vas, and many more)Measurement of advanced Wright Model parameters (Kr, Xr, Ki, Xi) for precision simulationsPrecise, high-resolution impedance response measurements with 30,000 data points (1 Hz to 20,000 Hz)Save and compare up to 20 impedance graphs simultaneously within one test fileIntegrated quality control feature set provides pass/fail parameter measurement (QC Pack)Sensitive rub and buzz detection functionality reveals hidden flaws in individual drivers (QC Pack)Software signal generator with selectable waveform, frequency, and amplitudeGenerates sine, square, triangle, saw tooth, impulse, pink noise, and log sweepsOscilloscope software mode with dual traces, plus adjustable time and amplitude scalesOscilloscope and generator modes are compatible with other audio interfacesQuality test interface hardware assembled using precision SMT components and automationHigh-quality alligator clip leads minimize contact resistance for improved consistencyIncludes method for calculating Vas from specified MmdFaster-than-ever hardware startup time virtually eliminates warm-up/cool-down
ManufacturerDayton Audio
SKU NoWES_DATS-V3_2



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN DATS-V3
SKU WES_DATS-V3_2
Brand Dayton Audio
