Samsung Air Conditioner Outdoor Unit Fan Motor 125W DC310V Condenser RC125PHXEAXSA RC155DHXEH
Samsung air con outdoor fan motor 125W DC310V
SKU: SLN_0014954
Most of our items are in stock and will be dispatched within 3 working days.
In rare cases where an item needs to be sourced from our supplier, dispatch may take up to 7 working days.

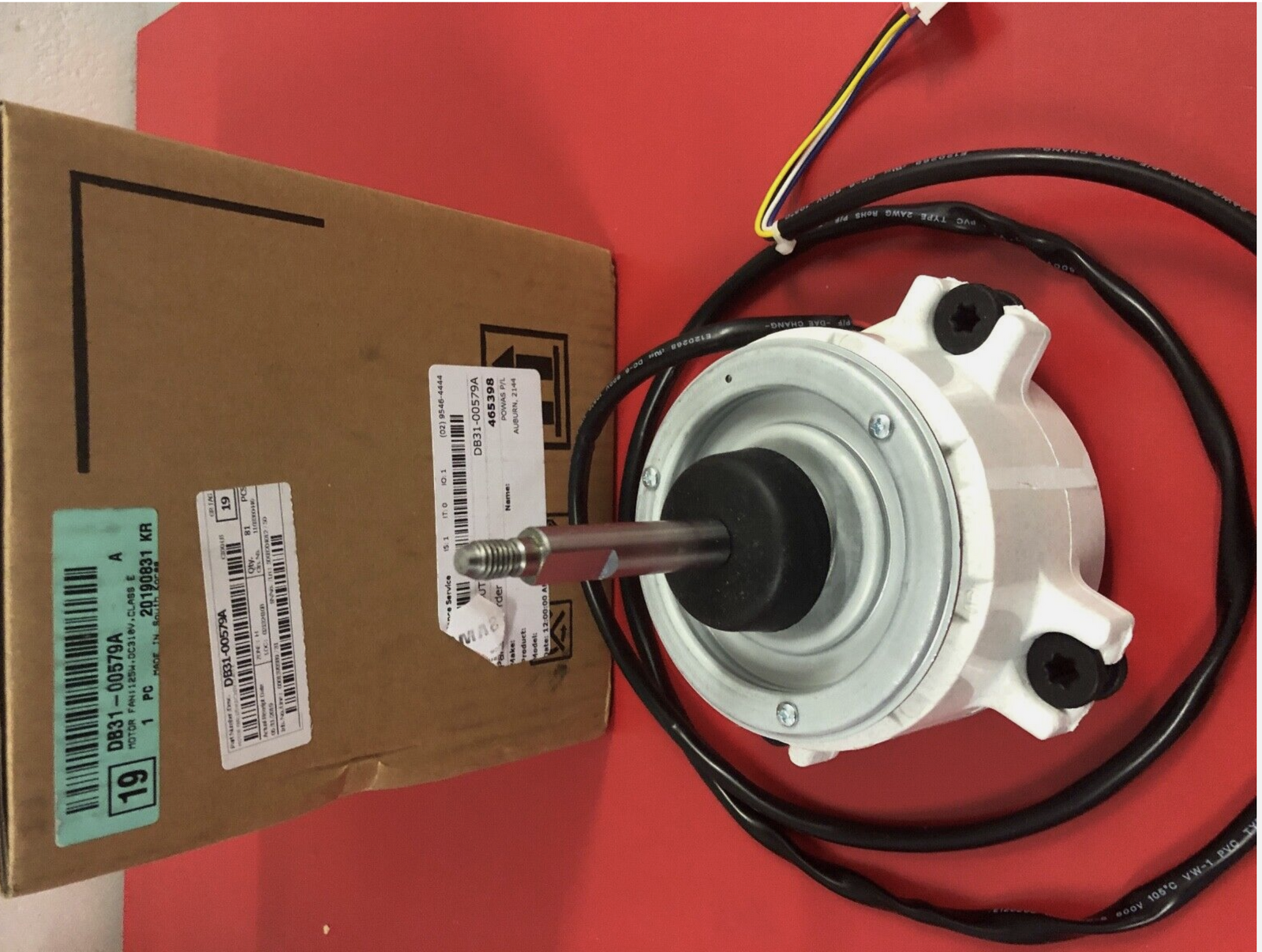

Samsung Air Conditioner Outdoor Fan Motor 125W DC310V
This is a replacement outdoor fan motor for Samsung air conditioners, rated 125 watts at 310 volts DC. It drives the propeller fan that pulls air across the outdoor coil. That airflow is how the system gets rid of the heat it has taken out of the building in cooling, or takes heat in from outside in heating. Without it the system runs up to high pressure and shuts down on protection.
Part Numbers
DB31-00579A
OEM Genuine
This is an OEM genuine part. It is made by the original equipment manufacturer, the same company in the same factory that made the part fitted to your appliance when it was built, and it carries their part number. It is supplied to us without the appliance brand retail packaging, and that is the only reason it costs less than a boxed part bought from the brand. The part itself is the same part.
Suitable Brands
Samsung
Suitable Models
RC125PHXEAXSA, RC155DHXEH, RC140DHXEHXSA, RC155DHXEGXSA, RC180DHXGHXSA, AC140HCAFNHSA, AC090HCAFKH, RC140DHXEGXSA, AC120HBHFKH_AC120HCAFKH, RC125DHXEAXSA, RC100PHZEA, RC-140DHXEH, RC180DHXGGXSA, RC100PHXEAXSA, RC140PHXEA, AC100HCAFKH, RCI00DHXEH, AC120HCAFKHSA, RC125DHXEHXSA, AC160JXAFKHSA, RC180DHXGH, AC140HCAFNH, RC100DHXEHXSA, RC100DHXEH, RC155DHXEHXSA, AC140HCAFKH, AC100HCAFKHSA, RC125DHXEGXSA, RC140PHXEAXSA, RC100DHXEGXSA, AC160JXAFNHSA
When To Replace
Replace the motor when the outdoor fan does not turn although the compressor runs, when the system trips on a high pressure fault a few minutes after starting in cooling, when the fan is noisy, wobbles or the bearings are gritty to turn by hand with the power isolated, when it runs at one speed only, or when the unit reports an outdoor fan motor fault. Check the fan blade is not fouling the guard and the coil is not blocked before condemning the motor.
Fitting
This part must be fitted by a licensed refrigeration mechanic or a qualified electrician. Isolate the system at the circuit breaker and allow the DC bus capacitors in the inverter to discharge fully before opening the electrical enclosure. Photograph the wiring and the fan blade position on the shaft, remove the fan guard, release the blade and the motor mounts, then fit the new motor with the blade at the same depth so it clears the guard. Reconnect the wiring in the same order and carry out insulation resistance and earth continuity tests before returning the unit to service.
Notes
This is a DC motor running at 310 volts from the inverter, not a mains AC motor. Do not test it by applying mains voltage. The capacitors in the outdoor unit hold a dangerous charge for several minutes after power is removed.
| TECHNICAL SHEET | |
|---|---|
| Part No | DB31-00579A |
| Product | DB31-00579A SAMSUNG AIRCON OUTDOOR FAN MOTOR-125W, DC310V |
| Category | Air Conditioning |
| Subcategory | Air Conditioners |
| Class | Air conditioners |
| Replacement Item | Motor/Gearbox/Shaft |
| Suitable Brand | Samsung |
| Suitable Models | ✔ Samsung RC125PHXEAXSA ✔ Samsung RC155DHXEH ✔ Samsung RC140DHXEHXSA ✔ Samsung RC155DHXEGXSA ✔ Samsung RC180DHXGHXSA ✔ Samsung AC140HCAFNHSA ✔ Samsung AC090HCAFKH ✔ Samsung RC140DHXEGXSA ✔ Samsung AC120HBHFKH_AC120HCAFKH ✔ Samsung RC125DHXEAXSA ✔ Samsung RC100PHZEA ✔ Samsung RC-140DHXEH ✔ Samsung RC180DHXGGXSA ✔ Samsung RC100PHXEAXSA ✔ Samsung RC140PHXEA ✔ Samsung AC100HCAFKH ✔ Samsung RCI00DHXEH ✔ Samsung AC120HCAFKHSA ✔ Samsung RC125DHXEHXSA ✔ Samsung AC160JXAFKHSA ✔ Samsung RC180DHXGH ✔ Samsung AC140HCAFNH ✔ Samsung RC100DHXEHXSA ✔ Samsung RC100DHXEH ✔ Samsung RC155DHXEHXSA ✔ Samsung AC140HCAFKH ✔ Samsung AC100HCAFKHSA ✔ Samsung RC125DHXEGXSA ✔ Samsung RC140PHXEAXSA ✔ Samsung RC100DHXEGXSA ✔ Samsung AC160JXAFNHSA |
| SKU Number | SLN_0014954 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| AIRLINK | AIRLINK0001406 |
| SKU | SLN_0014954 |
| Model # | DB31-00579A |
| Brand | Samsung |
| Shipping Weight | 1.0000kg |
