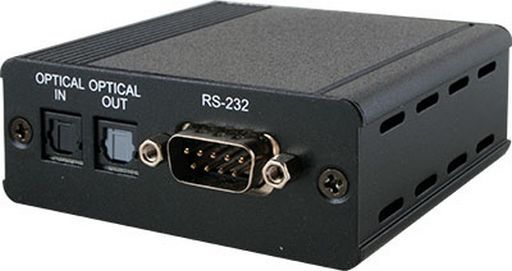

This is a .DIGITAL AUDIO/RS-232 OVER SINGLE CAT5e/6/7 TRANSMITTER AND RECEIVER of brand Cypress.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title .DIGITAL AUDIO/RS-232 OVER SINGLE CAT5e/6/7 TRANSMITTER AND RECEIVER
Notes The Optical Digital Audio with RS-232 Transmitter and Receiver set can send and receive digital audio (S/PDIF) signals over a single run of CAT5e/6 cable up to 300m. It has the added benefit of RS-232 pass-through allowing control of devices and the bi-directional Power over Cable (PoC) function eliminates the need for a second power supply, providing greater flexibility in installations. Supports pass-through of digital audio formats: LPCM 2CH,Dolby® Digital (up to 5.1CH), DTS (up to 5.1CH). Supports bi-directional Power over Cable (PoC).Supports bi-directional transmission (in/out) of Optical (S/PDIF) digital audio and RS-232 pass-throughSupports Optical S/PDIF audio sampling rates up to 192kHzSupports CAT5e/6/7 cable distances of 100m (328ft) at 192kHz sampling rate, 150m (492ft) at 96kHz sampling rate and 300m (984ft) at 48kHz sampling rateSupports pass-through of digital audio formats: LPCM 2CH,Dolby® Digital (up to 5.1CH), DTS (up to 5.1CH)Supports bi-directional Power over Cable (PoE)Bi-directional RS-232 control
DescriptionDigital Audio/RS-232 over CAT5e/6/7 Receiver
CableSingle CAT5e/6/7
Input2x CAT5/6/7
Output2x TOSLINK I/O + RS232
Cable Length300M
3D-
HDCP-
Ethernet-
HD Audio-
4K-
Deep Colour-
Max.300M
Brand.Cypress
ManufacturerCypress
InterfaceReceiver
Price TypeSingle
SKU NoWES_DCT-30RX_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN DCT-30RX
SKU WES_DCT-30RX_1
Brand Cypress
