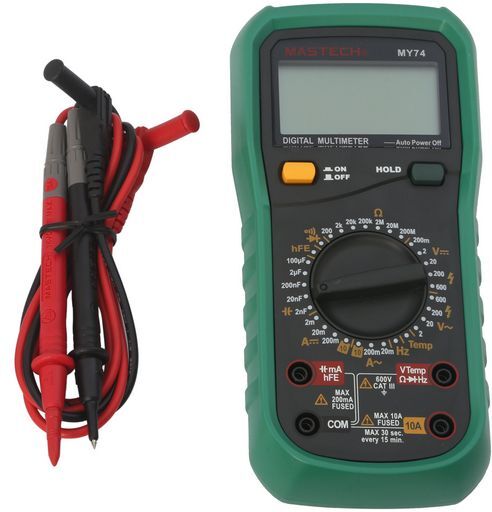

This is a DIGITAL MULTIMETER MY74 MASTECH of brand Protec.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title DIGITAL MULTIMETER MY74 MASTECH
Notes PLUS TEMPERATURE CAPACITANCE & TRANSISTOR This full-featured multimeter allows the user to test voltage, DC & AC current, resistance, frequency, capacitance, temperature, transistor gain, diode and continuity. The meter also features overload protection, data hold, auto power off, low battery display. It is RoHS compliant; CE ETL CAT II 600V approved. Includes 9V battery, component adaptor, a K-type thermocouple and safety test probes. The case is protected by an outer bump skin that has an in-built stand and can hold or store the probes.Test AC/DC voltage and resistance, continuity buzzer.Test AC/DC current up to 10 AmpsTest capacitance (100µF), frequency (20KHz) and temperatureDiode check and continuity test with audible buzzerhFE transistor gain measurement with component adaptor includedFull sized 188x93x50mmWith data hold button2000 counts LCD Display.DC Voltage: 200mV/2V/20V/200V (Accuracy: ± 0.5% rdg +2), 600V (Accuracy: ± 0.8% rdg +2)AC Voltage: 2V/20V/200V (Accuracy: ±0.8% rdg +3), 600V (Accuracy: ±1.2% rdg +3)DC Current: 2mA/20mA (Accuracy: ±0.8% rdg +1), 200mA (Accuracy: ±1.5% rdg +1), 10A (Accuracy: ±2% rdg +5)AC Current: 20mA (Accuracy: ±1.0% rdg +5), 200mA (Accuracy: ±1.8% rdg +5), 10A (Accuracy: ±3% rdg +7)Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ (Accuracy: ±0.8% rdg +3), 20MΩ (Accuracy: ±1% rdg +5), 200Ω (Accuracy: ±6% rdg +10)Capacitance: 2nF/20nF/200nF/2uF (Accuracy: ±4% rdg +3), 100uF (Accuracy: ±6% rdg +10)Temperature: -20°C to 1000°C (Accuracy: ±2% rdg +2)Frequency: 10Hz - 20kHz (Accuracy: ±2% rdg +5)Transistor hFE Gain measurementDiode test: 2.7V.Continuity buzzer < 50Ω1x 9V battery included.
ManufacturerProtec
SKU NoWES_MY74CE10_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN MY74CE10
SKU WES_MY74CE10_1
Brand Protec
