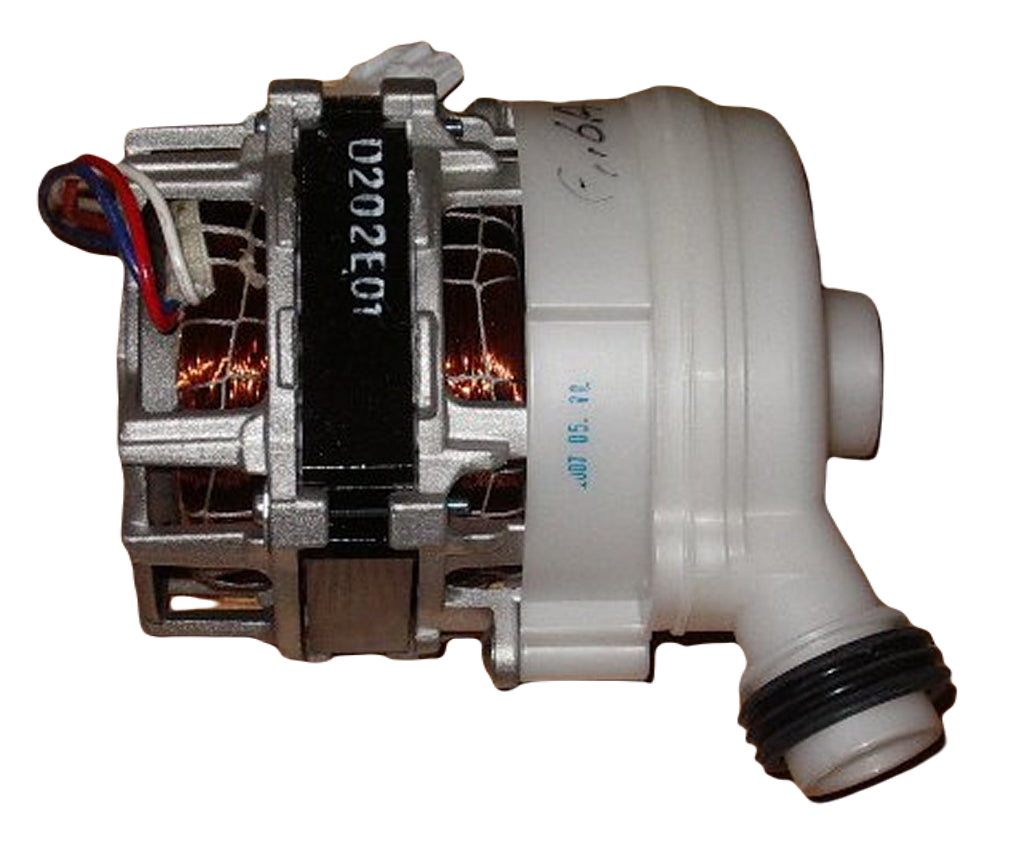

This is a replacement Dishwasher Wash Pump Motor Assembly. It is suitable for replacing spare parts with 5859DD9001A part number for LG Dishwashers.

SALIN is a leading Australian appliance spare parts distributor specializing in LG applicances. We take pride in our ability to bring hard-to-find LG spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our LG range is genuine.

TECHNICAL SHEET
Part No5859DD9001A
NotesLG Wash Pump Motor Assembly.Part No. 5859DD9001A, DW952, 4861ED1003CReplaces 5859ED1001A, 5859ED1001E, 4681ED1001B, LGDW003.Wash pump motor assembly to suit LG dishwasher models LD14AT2, LD14AT3, LD14AW2, LD14AW3, LD-1204W, LD-1204W1, LD1403W, LD2120W, LD4050W, LD4080T, LD4120M, LD-14AT2, LD-14AT3, LD-14AW2, LD-14AW3, LD-1403W, LD-1403W1, LD-1415T1, LD-1415W1, LD-2120W, LD-2040WH, LD-2050, LD-12AW5, LD-20525H, LD-2060LH, LD-2120WH, LD-2131SH, LD-2040WH, LD-2050WH, LD-2050MH, LD-2050SH, LD-2060LH, LD-2120SH, LD-2120WH, LD-2131SH, LD-2131WH, LD-2157LH, LD-2162LH, LD-4050W, LD-4080T, LD-4120M & others.220-240VAC, 120Watt, 50Hz made by LG Electronics.Interchangable with earlier 45Watt motor made by Jiangsu Sanjiang Appliance Company which uses a metal end bracket.The earlier motor, the LG Electronics type and the new replacement have 3110ED2001 on the plastic pump housing.This part often suffers from a broken impellor due to some foreign object getting past the filters. There are no internal parts available separately.The symptom is hearing a slight noise when the wash pump motor is running, but no water circulates. The machine will still fill and empty. Often error code E1 comes up.Reasonably easy to fit. This is not the only circulation motor used in LG diswashers. If your model is not listed above or you are not sure of the suitability, please contact us with your model number prior to purchasing
TitleDishwasher Wash Pump Motor Assembly For LG LD4120M Dishwashers
CategoryAppliance Spares > Kitchen Appliances > Dishwashers
Replacement ItemDishwasher Wash Pump Motor Assembly
Compatible Brands✔ LG
Replacing Parts✔ 5859ED1001A
✔ 5859ED1001E
✔ 4681ED1001B
Suitable Models✔  LG LD14AT2
✔  LG LD14AT3
✔  LG LD14AW2
✔  LG LD14AW3
✔  LG LD-1204W
✔  LG LD-1204W1
✔  LG LD1403W
✔  LG LD2120W
✔  LG LD4050W
✔  LG LD4080T
✔  LG LD4120M
✔  LG LD-14AT2
✔  LG LD-14AT3
✔  LG LD-14AW2
✔  LG LD-14AW3
✔  LG LD-1403W
✔  LG LD-1403W1
✔  LG LD-1415T1
✔  LG LD-1415W1
✔  LG LD-2120W
✔  LG LD-2040WH
✔  LG LD-2050
✔  LG LD-12AW5
✔  LG LD-20525H
✔  LG LD-2060LH
✔  LG LD-2120WH
✔  LG LD-2131SH
✔  LG LD-2040WH
✔  LG LD-2050WH
✔  LG LD-2050MH
✔  LG LD-2050SH
✔  LG LD-2060LH
✔  LG LD-2120SH
✔  LG LD-2120WH
✔  LG LD-2131SH
✔  LG LD-2131WH
✔  LG LD-2157LH
✔  LG LD-2162LH
✔  LG LD-4050W
✔  LG LD-4080T
✔  LG LD-4120M
SKU NumberFIT_0002522_001_00011
