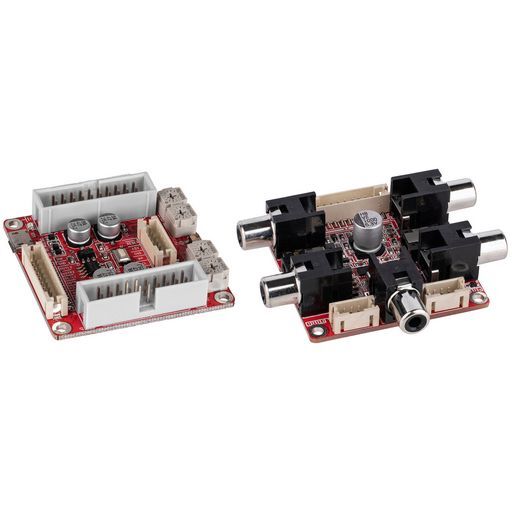

This is a DSPB KERNEL BOARD AND EXPANSION 2-IN 3-OUT of brand Dayton Audio.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title DSPB KERNEL BOARD AND EXPANSION 2-IN 3-OUT
Notes AS FEATURED IN DIYODE MAGAZINE The Dayton Audio DSPB-K DSP and DSPB-KE preamp bundle adds powerful DSP processing and quick connectivity to any amplifier or audio project! It’s preconfigured to adjust high / low pass filters and gain settings with the onboard potentiometers, but unlock its full potential by combining it with the Dayton Audio ICP1 (sold separately). Explore almost limitless possibilities of precise EQ, filters, bass processing, time alignment and so much more with the SigmaStudio development tool. Stacked together this package is still smaller than most passive crossover circuits, plus it adds all of the RCA and 3.5mm connections appropriate for making a 2.1 system. Requires Micro-USB power supply.Add the Dayton Audio DSPB-K and DSPB-KE bundle between your input source and amplifier to add powerful DSP processing to your next powered speaker or audio project! Thanks to the built in Analog Devices ADAU1701 processor, this preamp is capable of filters, precise EQ, bass enhancement, time alignment and so much more that isn’t feasible with passive crossover components. Get quick access to filter and gain settings with the built in potentiometers out of the box, but unlock the full potential of the DSPB-K by combining it with the Dayton Audio DSPB-ICP1 (sold separately), allowing it to be programmed with SigmaStudio and your Windows PC. Just make sure the switch on the DSPB-K is set to program mode, and the switch on the DSPB- ICP1 is set to USB. Check out the attached user manual and example SigmaStudio projects for more details about the capabilities of the entire DSPB series!  Stack the DSPB-K and DSPB-KE together and they're still smaller than most passive crossover circuits. The built-in RCA and 3.5 mm input/output jacks make it easy to add to an existing amplifier or design a 2.1 audio project.  Integrated DSP Chip Create nearly limitless possibilities of EQ, crossover, bass enhancement, time alignment and more thanks to the ADAU1701 DSP chip built into the DSPB-K kernel board.  Optional Programing Interface Board Add the DSPB-ICP1 to unlock the full potential of the DSP built onto your DSPB-K! When connected to a Windows PC, the DSPB-ICP1 allows you to program your DSPB-K with the Analog Devices SigmaStudio development tool, allowing for practically endless DSP customization including precise EQ, filters, bass enhancement, time alignment, and more that is practically impossible with passive crossovers.Extremely popular Analog Devices' ADAU1701 processor is built-in for advanced DSP processing in a tiny package. (Requires the DSPB-ICP1 to download your program)Four potentiometers built-in to adjust the gain and high / low pass filters for your satellite and subwoofer channels right out of the boxAlmost endless customisation when combined with a Dayton Audio ICP1 (sold separately) and SigmaStudio (Free for download to a Windows PC) then runs stand-alone3.5 mm and RCA input/output connections appropriate for making a 2.1 systemIncludes 10-pin wire harness and standoffs
SeriesDSP Boards
TypeKernel Kit
ManufacturerDayton Audio
SKU NoWES_DSPB-K-KE_3



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN DSPB-K-KE
SKU WES_DSPB-K-KE_3
Brand Dayton Audio
