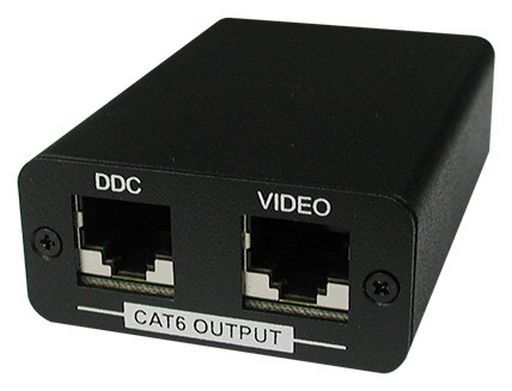

.DUAL CAT6 REPEATER
SUITABLE FOR DUAL CAT6 SWITCHERS & EXTENDERS
SKU code: WES_CH-108_1
This is a .DUAL CAT6 REPEATER of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | .DUAL CAT6 REPEATER |
| Notes | SUITABLE FOR DUAL CAT6 SWITCHERS & EXTENDERS The most advanced solution for CAT6 to CAT6 signal repeater. These two CAT6 connectors are for Video and DDC ports of transmitter and receiver which isolates the DDC capacitances of the two sides of the buffer. This is compatible with HDMI v1.3 specifications, a cutting-edge technology which defines the supports to transfer Deep Color (12bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio.HDMI 1.3, HDCP 1.1 and DVI 1.1 compliantSerial data rate at up to 2.25Gbps, capable of supporting the following digital video formats in Deep Colour Mode at up to 36 bits (12bits/colour)DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i to 1080pSupports CAT-6 cables for data/DDC transmissionSupports equalize and recover incoming TMDS data before re-transmitting them with optimal quality regardless of the incoming signal qualitySupports high definition resolution, the cable distance test with 1080p/8bits resolution the Input/Output source can run up to 45/45 metresSupports high definition resolution, the cable distance test with 1080p/12bits resolution the Input/Output source can run up to 15/15 metresSupports CEC bypassSupports xvYCC |
| Description | Dual CAT6 Repeater |
| Input | Dual CAT6 |
| Output | Dual CAT6 |
| 3D | Yes |
| HDCP | Yes |
| HD Audio | Yes |
| 4K | - |
| Deep Colour | Yes |
| Input Cable Length | 45M @ 8-bit, 15M @12-bit |
| Output Cable Length | 45M @ 8-bit, 15M @12-bit |
| IR | - |
| EDID | - |
| Cat6/6ex2 Input | 1 |
| Cat6/6ex2 Output | 1 |
| Max Res. | 1080p |
| Page | 26 |
| Cable Length | 45M @ 8-bit, 15M @ 12-bit |
| Max. | 45M/8Bit or 15M/12Bit |
| Compatible with | CH-1103TX, CH-1103RX, CH-1106TX, CH-1106RXN |
| Manufacturer | Cypress |
| Cable | Dual CAT6/7 |
| Compliance | HDMI V1.3 / DVI 1.1 |
| Extension Cables | N/A Dual |
| Power | PoC |
| Interface | Repeater |
| Device Type | Repeater |
| CEC | Yes |
| SKU No | WES_CH-108_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CH-108 |
| SKU | WES_CH-108_1 |
| Brand | Cypress |
