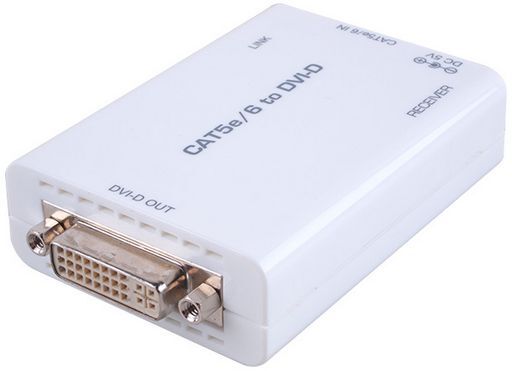

DVI OVER HDBaseT EXTENDER 1080P - CYPRESS
EXTEND DVI UP TO 60M - SENDER RECEIVER SOLD SEPARATE
SKU code: WES_CDVI-513RXL_1
This is a DVI OVER HDBaseT EXTENDER 1080P - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | DVI OVER HDBaseT EXTENDER 1080P - CYPRESS |
| Notes | EXTEND DVI UP TO 60M - SENDER RECEIVER SOLD SEPARATE The DVI Extender over single CAT5e/6 allows for a more efficient system setup and is easy to install. Uncompressed video and audio can be transmitted to distances of up to 60 metres (1080p) and supports High Definition Audio. The signal can be converted to an HDMI signal (with adaptor). Compatible with other HDBaseT senders and receiver with HDMI may depend on source and monitor formats.Designed with HDBaseT technology for greater flexibility in custom installations with full DVI signal transfer over a single CAT5e/6 cable.Complies with the HDBaseT-Lite classSupports HDMI (including HDCP) over a single CAT5e/6 up to 60mFull HD resolution support (1080p@60Hz/36-bit) and PC resolution support (VGA to WUXGA) over CAT5e/6 cableCompact size with stylish design HDBaseT allows AV signals to be transmitted over single, standard Category 5e, 6 or 7 cable. Full HDBaseT 5Play allows for the transmission of HD video, audio, power-over-cable, 100BaseT Ethernet and control signals (such as RS-232, infrared, etc) all at the same time over a single Cat cable. Full HDBaseT is capable of transmission distances of up to 100 metres. HDBaseT 'Lite' is a reduced function version which will simultaneously transmit HD video, audio and control signals over distances of up to 60 metres. In addition, where a system features multiple AV Sources and multiple AV Displays - and transmission distances to end points vary; full HDBaseT 5Play and HDBaseT Lite receivers can be used together on the same system (as long as the Transmitter device is full HDBaseT). |
| Description | HDBaseT DVI over CAT5/6/7 Receiver |
| Type | Receiver |
| Input | 1x CAT5e/6/7 |
| Output | 1x DVI |
| 3D | Yes |
| HDCP | Yes |
| RS232 Extension | No |
| IR Extension | No |
| PoE | No |
| Ethernet | No |
| Extender Cable | CAT5e/6/7 |
| HD Audio | Yes |
| Max Res. | 1080p |
| Compatible with | CDVI-513TXL |
| IR | - |
| RS-232 | - |
| Cable Length | 60M (@ 1080p) |
| Manufacturer | Cypress |
| 4K | Yes |
| SKU No | WES_CDVI-513RXL_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CDVI-513RXL |
| SKU | WES_CDVI-513RXL_1 |
| Brand | Cypress |
