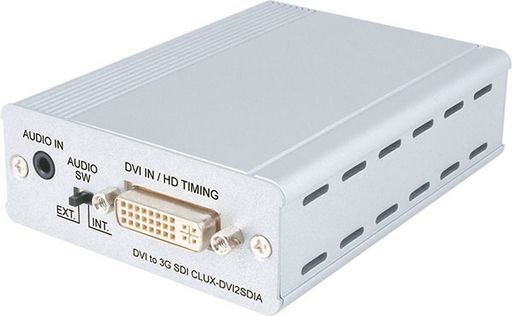

DVI TO 3G-SDI VIDEO CONVERTER WITH AUDIO - CYPRESS
TRANSMIT ANALOGUE AUDIO & DVI VIDEO ON 3G-SDI
SKU code: WES_CLUX-DVI2SDIA_1
This is a DVI TO 3G-SDI VIDEO CONVERTER WITH AUDIO - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | DVI TO 3G-SDI VIDEO CONVERTER WITH AUDIO - CYPRESS |
| Notes | TRANSMIT ANALOGUE AUDIO & DVI VIDEO ON 3G-SDI The DVI to SDI Converter allows DVI-D signals to be shown on an SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signals without any loss. For professionals this means that it is now easier to convert your high definition DVI signals (with audio) to SDI for long distance transmission to display your media on an SDI display. In addition, the external audio input allows the user to insert the sound from a different audio source instead of the DVI embedded audio, and send to the SDI output. Supports DVI input up to 1080p.DVI signal conversion to SDI signalSupports DVI input resolutions of:- 480i@59.94Hz and 576i- 720p@50/59.94/60Hz and 1080i@50/59.94/60Hz- 1080p@23.98/24/25/29.97/30/50/59.94/60HzOperation at bitrates of 270Mbps, 1.485Gbps, 1.485/1.001Gbps, 2.970Gbps and 2.970/1.001GbpsSupports SDI standards of:- SMPTE 259M-C@270Mbps- SMPTE 292M@1.485Gbps and 1.485/1.001Gbps- SMPTE 424M and SMPTE 425M (Level A and Level B)@of 2.970Gbps and 2.970/1.001GbpsConverts DVI signals to SDI signals:- 480i and 576i to SD-SDI/SMPTE 259M-C- 720p and 1080i to HD-SDI/SMPTE 292M- 1080p to 3G-SDI/SMPTE 424M and SMPTE 425M (Level A and Level B)Supports SDI output distance up to 300m (SD-SDI), 200m (HD-SDI) or 100m (3G-SDI) |
| Description | DVI to SDI converter with Audio |
| Input | 1x DVI |
| Output | 1x SDI |
| Input Video Formats | Digital RGB |
| Output Video Formats | SD/HD/3G-SDI |
| Supported TV Resolutions | 480i-1080p |
| Supported PC Resolutions | VGA-WUXGA (RB) |
| Manufacturer | Cypress |
| Brand. | Cypress |
| SKU No | WES_CLUX-DVI2SDIA_1 |
