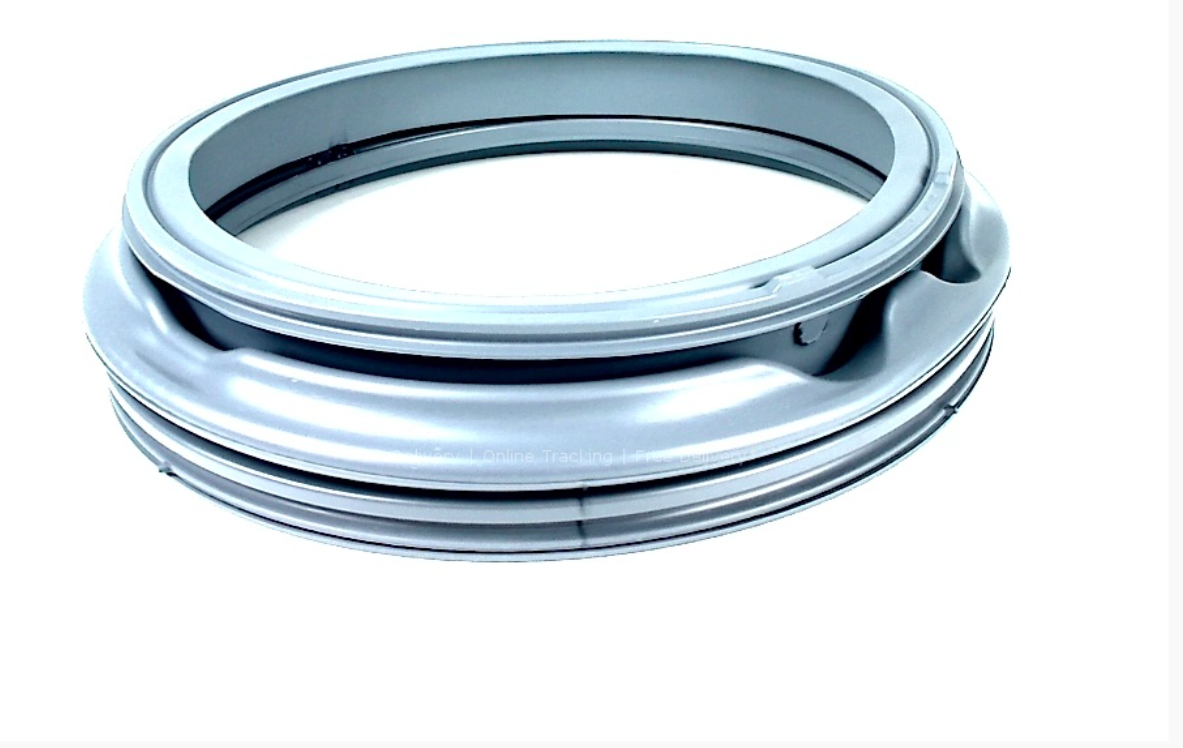

Washing Machine Door Boot Seal / Bellows Gasket - Euromaid, Baumatic, Lemair & Fisher & Paykel Front Loaders

The door boot seal (also called the door bellows, door gasket or in the manufacturer catalogue the "door hood - rubber") is the large flexible rubber ring that joins the front of the cabinet to the outer tub and keeps wash water inside the drum. It is a wear item: coins, underwire, zips and keys cut the lower fold, and years of damp cycling perish the rubber and trap mould. This is the correct seal for the 5kg and 7kg Arcelik-built front loaders sold in Australia under the Euromaid, Baumatic, Lemair and Fisher & Paykel badges.

Please check before ordering: WM8 and WMFL8 do NOT use this seal. The 8kg machines take a different gasket (2905573100, current number 2905573500) - ordering this one for a WM8 will not fit. Also note: two different boot seals were fitted across the BWL5, WM5PRO, WM7PRO and WMFL55 production run. If you have one of those four models, please send us your serial number from the rating plate before you order and we will confirm which variant your machine takes. Fitment is by chassis platform and production date, not by drum capacity.
Part Numbers
Part number2905570100
Current / superseding number2905572500 - same part, later number
Manufacturer descriptionDoor Hood - Rubber (Arcelik / Beko catalogue term)
Also sold asDoor boot seal, door bellows, door gasket, front loader door seal
Fisher & Paykel reference790721
Approximate sizeAround 370mm diameter; inner circumference approx 101cm, outer approx 112.5cm
Colour / materialGrey moulded rubber
Which Part Do You Need
2905570100 - this listingThe 5kg / 7kg boot seal. Superseded by 2905572500 - if you are quoted either number you are being quoted the same seal.
2905572500The current Arcelik number for this same seal. Interchangeable with 2905570100.
2905572100A different boot seal used on some BWL5, WM5PRO, WM7, WM7PRO and WMFL55 machines. Check your serial number if you have one of these models.
2905573100 / 2905573500The WM8 and WMFL8 gasket. Larger machine, different seal - not this part.
2904520100A visually similar Beko / Blomberg gasket that aftermarket sellers often cross-list against this one. Not confirmed interchangeable - we do not recommend substituting it.
790721Fisher & Paykel's own number for the same bellows on the WH70F60 series.
Fits These Models
WM5WM55WM5PROWM7WM7PROWMFL55BWL5LW5WH70F60W2WH70F60W3WH70F60WV1

Brands: Euromaid, Baumatic, Lemair, Fisher & Paykel (Arcelik / Beko built). On Euromaid and Baumatic machines the model and serial number are on a sticker inside the door opening or on the rear panel; on Fisher & Paykel they are on the rating plate behind the door. Please quote the full model number and the serial number. If your model is not listed, send us your full model number and we will check it for you.

Symptoms This Part Fixes
Water on the floor at the front of the machineSplit or perforated bellows - almost always in the underside of the bottom fold.
Leaks only during or just after spinAn early-stage split that only opens up under spin pressure.
Persistent musty or mouldy smellMould embedded in perished rubber that keeps coming back after cleaning.
Black marks or rubber debris on clean washingThe rubber has broken down and is shedding onto the load.
Visible tears, cuts or holes in the rubberUsually caused by coins, keys, underwire or zips trapped in the fold.
Door will not seal or feels looseSeal has hardened, stretched or come out of its retaining groove.
Specifications
Part typeDoor boot seal / door bellows gasket
FitsFront load washing machines, 5kg and 7kg Arcelik platform
DiameterApproximately 370mm
Inner circumferenceApproximately 101cm
Outer circumferenceApproximately 112.5cm
ClampsTwo coil-spring retaining clamps - outer band to cabinet, inner band to outer tub
Not suitable forEuromaid WM8 and WMFL8
Fitting Notes
Isolate and drainSwitch off at the wall, turn off the water tap and drain the machine through the filter before you start.
Front panelOn this Arcelik platform you will usually need to remove the kick strip, release the door lock and take out the three screws at the bottom of the front panel to get proper access.
Outer clampPrise the outer spring band tensioner out with a flat blade screwdriver and note the channel it seats into before removing it.
Inner clampThe inner spring clamp holds the rear lip to the outer tub lip. It needs a clamp tool or good needle-nose pliers to re-tension.
Orientation - criticalThe seal is not symmetrical. The drain and vent holes must sit at the very bottom, and the locating mark on the seal must line up with the mark at the top of the outer tub. Fitting it rotated is the most common cause of an immediate leak after replacement.
SeatingA little dish soap helps it seat without forcing. Fit the inner clamp first, then stretch the front lip onto the cabinet, then the outer spring last.
Final checkRun a finger right around the seal and check for creases or rolled edges - a crease will wick water straight out. Then run a short rinse and spin before refitting the panel.
