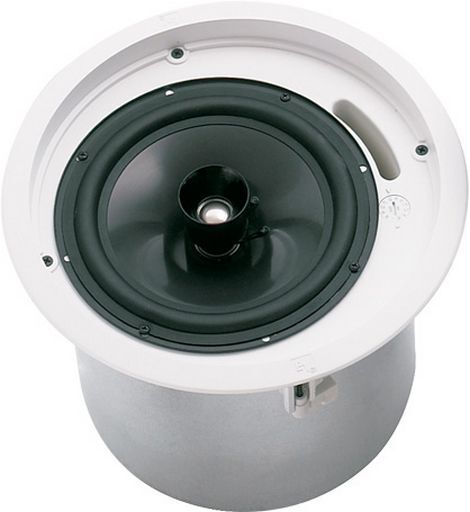

EV CEILING SPEAKERS - PREMIUM SOUND
ELECTRO-VOICE QUALITY SOUND
SKU code: WES_C8.2LP_1
This is a EV CEILING SPEAKERS - PREMIUM SOUND of brand Electro-Voice.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | EV CEILING SPEAKERS - PREMIUM SOUND |
| Notes | ELECTRO-VOICE QUALITY SOUND The Bosch Premium Sound Ceiling loudspeaker system is a complete package consisting of a bezel assembly, grille, rear enclosure, coax mounted two-way loudspeaker and internal line-matching transformer. Features a waveguide coupled titanium coated dome tweeter, 2nd order crossover network at 3.3kHz, protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. Transformer with 70V or 100V lines, or 8Ω bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder coated enamel. The baffle and bezel are constructed from UL94V-0 rated ABS. The Bosch line of ceiling speakers has been designed to provide wide dispersion, high efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.Coaxial two-way hi-fi speaker systemWaveguide coupled Ti tweeterFull bandwidth overload protectionFront baffle wattage tap adjustmentIntegrated low loss matching transformer allows for either 70v/100v or 8Ω operationIncludes tile bridge and mounting ring for easy installationIntegrated ported enclosure for extended bass response Sold in pairs. |
| Description | Recessed Ceiling Prosound Lsp 30W 8” Low Profile (2PCS) |
| Size | 178x270mmØ |
| Price Type | Pair |
| Freq. | 55Hz-20KHz |
| Watt | 75W(300Wmax) |
| Taps | 8Ω/1.88/3.75/7.5/15/30W |
| SPL | 91dB |
| dBi | 116dB |
| Manufacturer | Electro-Voice |
| Brand. | Electro-Voice |
| QTY | Pair |
| SKU No | WES_C8.2LP_1 |
